Product Details:
|
| Operating Language: | Chinese / English | Discharge Pressure: | 0.7Mpa |
|---|---|---|---|
| Weighing Controller: | Germain System | Weighing Sensor: | Telode |
| Capacity: | 300-500 B/h | Package Type: | Normal Open Mouth Bag Or M Type Bag |
| Weigher: | Single / Double Bucket | Power: | 3KW |
| Highlight: | 25kg Dry Food Packing Machine,500bH Dry Food Packing Machine,25kg food packaging equipment |
||

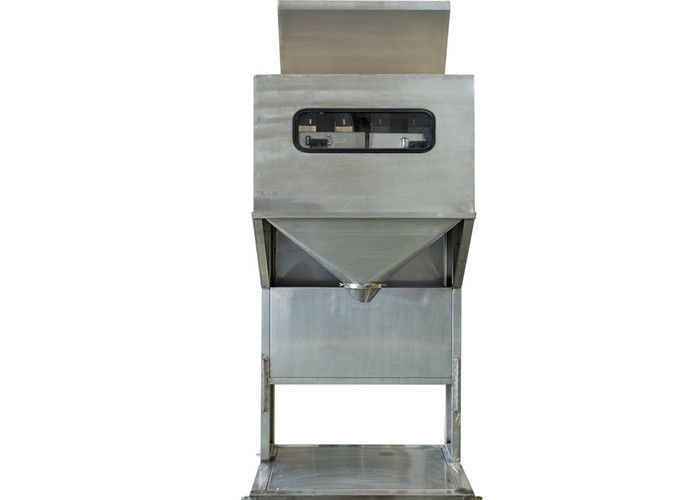

Explosion-Proof Food Packing Machine In Agricultural Industry With Food Grade Material
Machine Features
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.

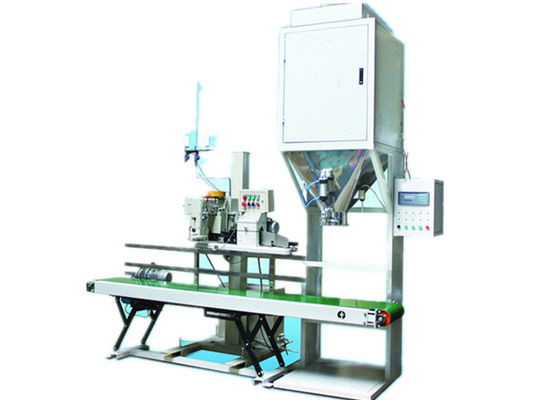

The machine unit can realize automatic material measuring, manual bag feeding, automatic bag mouth sewing in one basic line.
Depending on customer's specific needs for packing, the machine can equip with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand to form whole packing and palletizing line
Electronic touch screen, easy operation
Independent suspension sensors, signal stability, ensure the weighing accuracy
Infrared sensor, two speed feeding system, weighing precision is high
Machine Technicals
| Machine type | SXP25G |
| Weight range kg | 5-25 kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
Conveyor Parameters
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Using Range
Automatic weighing packaging for granule, loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries
Working Principles
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed).
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Packaging and Delivery
Film wrapped and then fixed on wooden cases.
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
FAQ
Q: Can your machine meet our needs well?
A: After receiving your inquiry, we will confirm your
1. Your pack weight per pouch, pack speed, pack bag size (it is the most important).
2.Show me yours unpack productions and pack samples picture.
And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
Q: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in our factory.
