Product Details:
|
| Capacity: | 300-500 B/h | Operating Language: | Chinese / English |
|---|---|---|---|
| Weighing Controller: | Germain System | Weighing Sensor: | Telode |
| Discharge Pressure: | 0.7Mpa | Display Type: | Touch Screen/buttons |
| Machine Weight: | 400-600kg | Gas Supply: | Oil-free, Dust-free Instrument Gas |
| Package Type: | Normal Open Mouth Bag Or M Type Bag | ||
| Highlight: | 25kg fertilizer packing machine,IP65 Organic fertilizer packing machine,25kg fertilizer packaging machine |
||

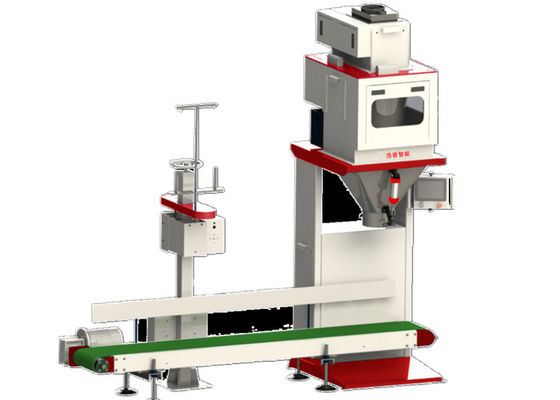

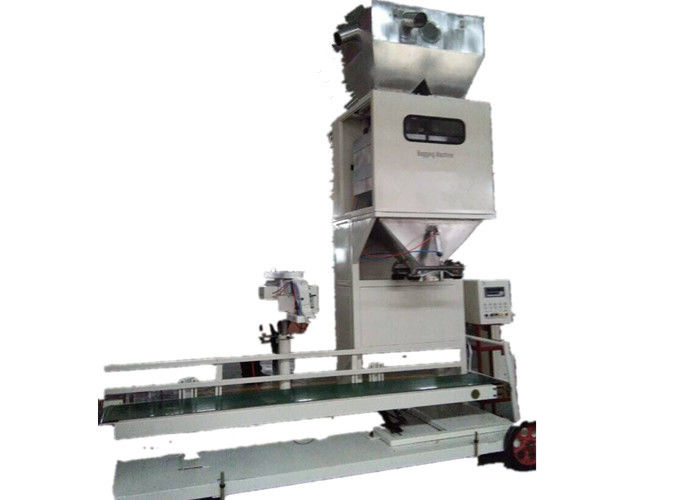

IP65 Protection Organic Fertilizer Industry Bag Packing Machine With Three-Stage Material Feeding
Using Range
Automatic weighing packaging for granule, loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries
Product Process
Obtain raw materials, cutting, laser, shearing, bending
Assembling, welding
Surface treatment: grinding, polishing, pickling
Assembling, finish circuit boards
Test machine before delivery
QC give inspection report, then arrange delivery
Machine Features
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The machine unit can realize automatic material measuring, manual bag feeding, automatic bag mouth sewing in one basic line.
Depending on customer's specific needs for packing, the machine can equip with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand to form whole packing and palletizing line
Electronic touch screen, easy operation
Independent suspension sensors, signal stability, ensure the weighing accuracy
Infrared sensor, two speed feeding system, weighing precision is high
Working Principles
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed).
Components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch |
Machine Technicals
| Model | Weighing Scope | Speed | Accuracy | Power | Air pressure |
| SXP05G | 0.5-5kg | 10-15 bags/minute | 0.2%F. S | 3Kw | 0.4-0.6MPa |
| SXP25G | 5-25kg | 8-14 bags/minute | |||
| SXP50G | 20-50kg | 4-12 bags/minute |
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Packaging and Delivery
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
FAQ
Q: Where are you located?
A: Our factory is in Hefei city (2 hours high-speed train from Shanghai). Air port name is HFE.
Q: Can your machine meet our needs well?
A: After receiving your inquiry, we will confirm your
1. Your pack weight per pouch, pack speed, pack bag size (it is the most important).
2.Show me yours unpack productions and pack samples picture.
And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
Q: Can you offer oversea service?
A: Engineers available to service overseas.
