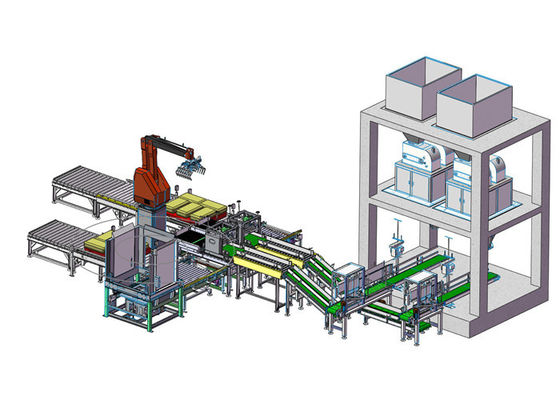

Bag palletizer machine In 3C electric , daily chemical industry with Customized gripper
Introduction
SR series robot has unique linear actuator, energy-saving, environmentally friendly arm design, and simple operation interface formulate gripper, which can customize professional robot solutions for different production lines and materials. Its excellent accuracy, speed, and efficient and stable performance enable a robot to complete the palletizing requirements of multiple production lines at the same time. Robot load capacity 120KG-300KG, can be suitable for feed, chemical, grain and oil, food, building materials, daily chemical, alcohol, beverage, medicine, home appliances, 3C electronics and other industries.
Technical Parameters
| XY-SR210 Palletizing robot Technical Parameter | |||
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Product Application

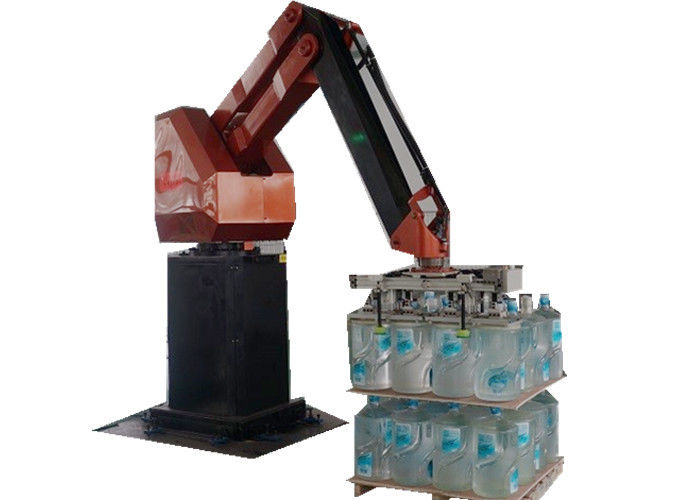

The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.
Main Electrical Components List
| No | Parts name | Model | QTY | Supplier | Note |
| 1 | A axis servo motor | MSME202G1H | 1 | Panasonic | Japan |
| 2 | B axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 3 | C axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 4 | D axis servo motor | MSMD042G1U | 1 | Panasonic | Japan |
| 5 | A axis servo amplifier | MDDHT5540 | 1 | Panasonic | Japan |
| 6 | B axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 7 | C axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 8 | D axis servo amplifier | MBDHT2510 | 1 | Panasonic | Japan |
| 9 | A axis synchronous belt | OMEGA HP B20 | 1 | OPTIBELT | Germany |
| 10 | B axis synchronous belt | OMEGA HP B20 | 1 | OPTIBELT | Germany |
| 11 | C axis synchronous belt | OMEGA HP B15 | 1 | OPTIBELT | Germany |
| 12 | B axis screw | R50*20-S | 1 | HIWIN | Taiwan |
| 13 | C axis screw | R45*12-S | 1 | HIWIN | Taiwan |
| 14 | B axis slider, guild rail | SNS35LR2SSC1-690 | 2 | THK | Japan |
| 15 | C axis slider, guild rail | SNS35LR2SSC1-520 | 2 | THK | Japan |
| 16 | A axis reducer | FC-A75-69 | 1 | Sumitomo | Japan |
| 17 | D axis reducer | F2C-T155 | 1 | Sumitomo | |
| 18 | Control chip | / | 1 | ADI | America |
| 19 | Touch screen | DTP7-W | 1 | DAIN CUBE | Korea |
| 20 | Regenerative resistor | RXLG500~1000 | 4 | JIAYINGDA | / |
| 21 | Limit switch | SL1-AK | 5 | AZBIL | Japan |
| 22 | Optoelectronic switch | GL6-N1112 | 5 | Sick | German |
| 23 | Solenoid valve | SY5120/7120 | 2 | SMC | Japan |
| 24 | Press-bag cylinder | MGPM25 | 2 | SMC | Japan |
| 25 | Gripper cylinder | CG1BN63 | 4 | SMC | Japan |
Using Advantages
A. Touch-screen operation achieves man-machine communication, displaying the production speed, failure reason and position.
B. The product palletizing patterns, pallet supply and discharging can all be programmed by PLC.
C. Palletizing pattern is easy to adjust on the touchscreen.
D. Carton supply system adopts brake motor control to ensure carton conveying according to pre-set position.
E. Pallet magazine has a high capacity of 12-15 empty pallet ensuring automatically pallet supply.
F. Different palletizing patterns can be finished without replacing the palletizing components.
Working Movement
Electric Parts
Package and Shipping
Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
We can also transport the machines by flight, all depend on client's requirement.
Customize Contact Us
You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?
7. Do you want auto pallet magazine?
8. What’s your country voltage?
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
