Product Details:
|
| Voltage: | 280V - 380V | Weighing Range: | 25--50kg |
|---|---|---|---|
| Packing Speed: | 480-600 Bags/ Hour | Filling Method: | Screw Filler / Gravity Filler |
| Weighing Accuracy: | ±0.2-0.5% | Origin: | Hefei, Anhui Province |
| Package Material: | Plastic , Paper , PE , PP Etc. | Machine Material: | Contact Parts 304SS, Other Carbon Steel |
| Highlight: | Inverter Controls Weighing Packing Machine,600 bags/ hour Weighing Packing Machine,Inverter Controls Auto Weighing Filling Machine |
||

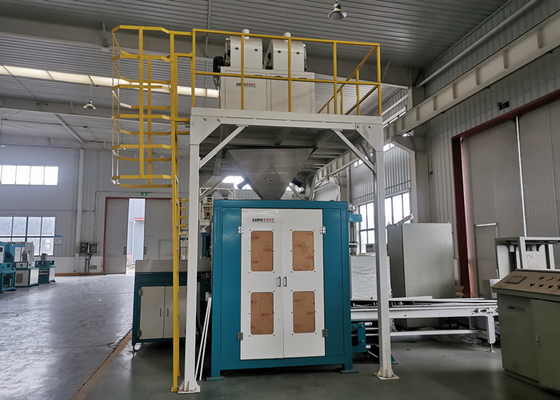

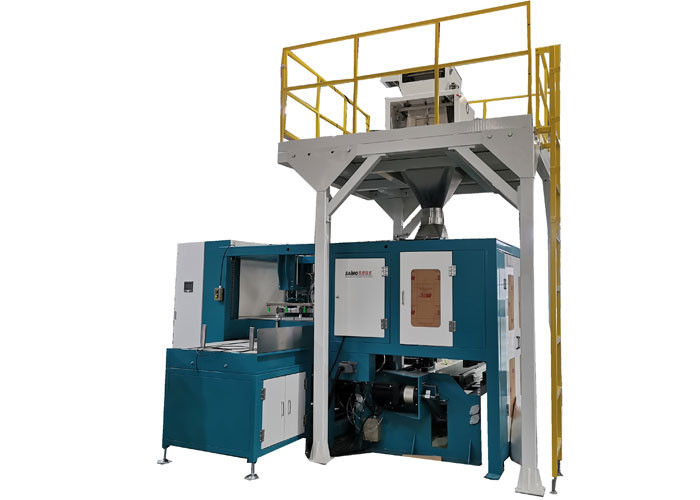

Inverter Controls Fertilizer Weighing Filling Packing System Machine
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Machine Developing Background Introduction
- With the world society developing at an amazing speed, the labor cost and the working efficiency has already become a major concern of many big enterprises. Meanwhile, how to improve the packing technology and help customers to solve their problem also becomes a big target for all the packing machine manufacturers;
- Grasp the key point, Saimo Eagle Automation self-developed the newest generation SXPA5O Automatic Big Bag Bagging & Palletizing Machine to meet the great market needs; since then, the machine unit has been put into market for more than ten years and has been greatly accepted by many customers all over the world;
- The whole machine line starts from front line connecting, material measuring, filling, bag feeding & clamping, bag conveying & sewing, finished products comes out; Further line shall continue with bag push down system, bag shaping conveying system, robot palletizing system & pallet stock system; palletizing system & pallet stock system
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell | Toledo (Sweden) |
Machine Features
1. PLC control system with low failure rate and higher reliability.
2.The host adopts fast and the slow inverter controls material filling.
3. It has automatic storage of production information.
4.The operating parameters can be stored for later use, avoiding recalibration when changing materials cyclically.
5.Accurate measurement accuracy and easy equipment cleaning, no blocking.
Precautions for use
Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;
Notice: please keep the equipment clean inside and outside and avoid moisture;
Notice: please do not change any part on the machine;
Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;
Notice: before formal startup, if the specification needs to be changed, please perform operation in strict accordance with the specification change steps, otherwise, the equipment may be damaged;
Notice: please do not place moist and dirty articles on the equipment deck.
Packaging and Delivery
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship by sea from port Shanghai.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
FAQ
Q: How do we test your machinery?
A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shipment.
