Product Details:
|
| Name: | Rice Packing Machine | Filling Method: | Screw Filler / Gravity Filler |
|---|---|---|---|
| Weighing Range: | 25-50kg/bag | Packing Speed: | 5-10 BPM |
| Application: | Fertilizer Feed | HS Code: | 8422400000 |
| Air Supply Source: | 0.6MPa, 0.5m3/min | Dimension(L*W*H): | 5700*2800*3500mm |
| Highlight: | 10 BPM 25 Kg Rice Packing Machine,Fertilizer 25 Kg Rice Packing Machine,Fertilizer Feed Rice Packing Machine |
||

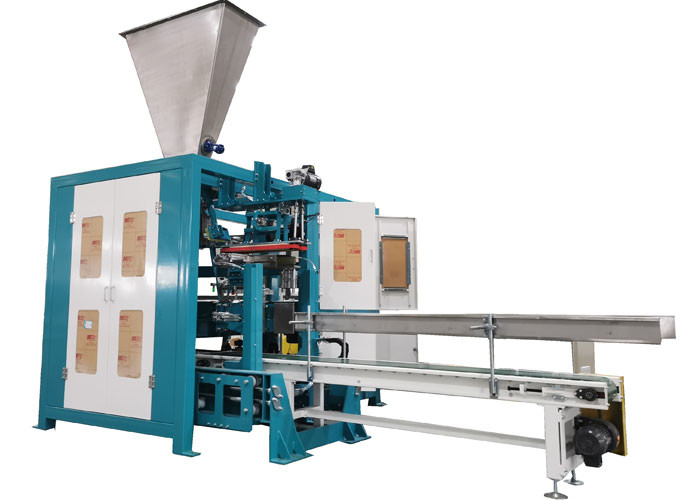

25kg Rice Packing Machine For Fertilizer Feed In Chemical Industry
Introduction
Automatic Weighing And Packing Machine is applied to a wide range of packages, such as pre-made pouch, prefabricated bags, zipper pouch, spouted pouch, and shaped pouch etc. Up to 50kg can be filled.
- The whole machine line starts from front line connecting, material measuring, filling, bag feeding & clamping, bag conveying & sewing, finished products comes out; Further line shall continue with bag push down system, bag shaping conveying system, robot palletizing system & pallet stock system; palletizing system & pallet stock system
Automatic Weighing And Packing Machine Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Bag Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
System equipment meets engineering condition &public use
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
Machine Main components
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag sending unit
e. Bag upper unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing station
j. Stand-up bag conveyor
k. Electrical control section
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Automatic Weighing And Packing Machine Features
1. The control parts use Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability.
2. The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder.
3. The vacuum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch.
4. On all actuating mechanism, there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Packaging and Delivery
1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
