Product Details:
|
| Machine Voltage: | 380 / 220 V / Customized | Machine Type: | Vertical Type |
|---|---|---|---|
| Packing Speed: | 2-5 Bags Minute | Weighing Accuracy: | ±0.5% |
| Controller: | PLC And Touch Screen | Sealing Type: | Heat Sealed / Stitched / Folding Sewing/ Etc. |
| Certificate: | CE, Certificate Of Origin, ISO | Material Feeder: | Screw Filling Method |
| Weighing Way: | Sensor / Load Cell | User Manual: | English Version |
| Highlight: | 50kg Bag Fertilizer Packing Machine,PLC Fertilizer Packing Machine,50kg Bag Fertilizer Packaging Machine |
||

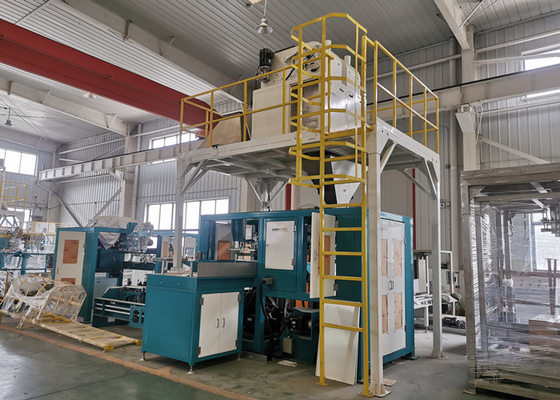

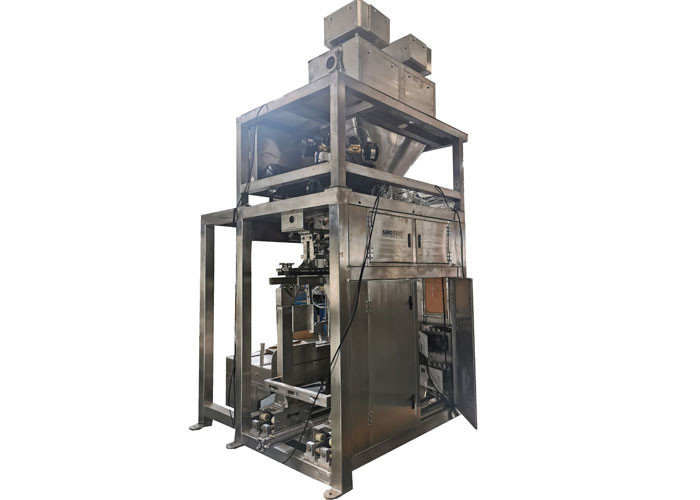

50kg Bag Fertilizer Packing Machine In Chemical Industry
Brief Description
It is a fully automatic high-speed bagging machine, automatic weighing and filling machine, Automatic granule packing machine for 10-25kg open-mouth woven PP and paper bags.
- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;
- This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
Technical Parameter
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode |
Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing
|
|
Packaging Unit
a. Hopper:0.3m³ Cone Type hopper, equipped with function of material level alarm
b. Measuring Scale: High accurate packaging, three-sensor location weighing structure, packaging speed over 700bags/h
c. Bag storage: 200-400 empty bags storage.
d. Bag Holding Type: mechanical arm fetching
e. Bag Sealing Type: fully automatic bag thread stitching or heat sealing or other sealing type customer required.
f. Repair Platform: Lade stand, anti-slip platform and safety railing
Application Scope
Particles, sheet materials (such as polyethylene, polypropylene, polyvinyl chloride, PVC, PVA, etc.). Applicable to many industries, including the chemical industry, cereal, food, pharmacy, fertilizer, seed, feed, and additives, etc., and mainly targeted at the full-automatic high-speed measurement and packaging of granular, loose and flake-like materials
In the process of production, it realizes the full automation of bag supply, bag taking, bag opening, bag bagging, metering, filling, bag unloading, clamping shaping, folding and sealing, etc.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Machine main components list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Our Service
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sale Service
- We Shall Arrange Engineers to Be at Present After Machine Arrived at Customer's Factory;
- Teaching Lessons Shall Be Arranged During Installation Periods.
- The Engineer Shall Head Back to China Until Machine Running Stable At Present.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Description of functional modules
Functional modules include
1. Storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.
2. 25-50KG double-head weighing machine: quantitative metering and supply.
3. Working platform: used for equipment inspection and maintenance.
4. Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;
Main Features
1. The machine unit line adopts famous brand electrical parts like Mettler Toledo load cell / Banner Vacuum Generator / SMC Valve / Siemens PLC & Touch Screen etc. To ensure good machine performance for customer;
2. The main packing machine shall be equipped with safe door and the robot hand shall be equipped with safety guard to ensure the worker’s safety;
3. The whole machine line shall build up a controlling cabinet for the connecting of all the machine lines;
4. The whole machine line just require one to two person for operating & normal checking which greatly save the labor cost for the customer and increase the production efficiency
