Product Details:
|
| Voltage: | 280V - 380V | Weighing Range: | 10-50kg / Bag |
|---|---|---|---|
| Origin: | Hefei, Anhui, China | Packing Speed: | 480-600 BPH |
| Filling Method: | Screw Filler / Gravity Filler | Weighing Accuracy: | ±0.2-0.5% |
| Package Material: | Plastic , Paper , PE , PP Etc. | Machine Material: | Contact Parts 304SS, Other Carbon Steel |
| Highlight: | 25Kg Bag Weighing And Packing System,25Kg Bag Weighing And Packing Machine,Plc Control Weighing And Packing Machine |
||

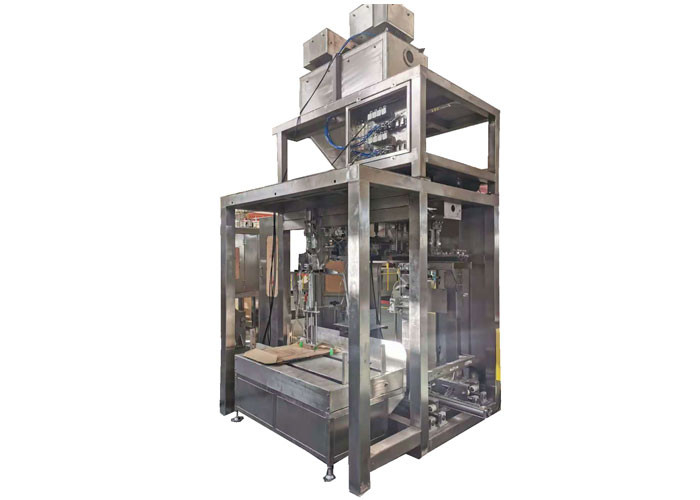

25Kg Bag Automatic Weighing And Packing System Machine With Plc Control System
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
General Introduction
It is distinguished by its outstanding speed and reliability as well as its high flexibility to work with all kinds of bag types and materials. Due to its technical maturity and several patented modules, the bagging system has become one of the most reliable packaging machines in the world. The bagging machine has been therefore installed in many different industries for packaging products like plastic pellets, animal feed, corn, seed, beans, lentils, sugar, rice, and so on.
Machine Features
1. PLC control system with low failure rate and higher reliability.
2. The host adopts fast and the slow inverter controls material filling.
3. It has automatic storage of production information.
4. The operating parameters can be stored for later use, avoiding recalibration when changing materials cyclically.
5. Accurate measurement accuracy and easy equipment cleaning, no blocking.
Precautions for use
Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;
Notice: please keep the equipment clean inside and outside and avoid moisture;
Notice: please do not change any part on the machine;
Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;
Notice: before formal startup, if the specification needs to be changed, please perform operation in strict accordance with the specification change steps, otherwise, the equipment may be damaged;
Notice: please do not place moist and dirty articles on the equipment deck.
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell | Toledo (Sweden) |
Packaging and Delivery
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship by sea from port Shanghai.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
