Product Details:
|
| Application: | Beverage, Food, Medical | Robot Gripper: | Designed According To Product |
|---|---|---|---|
| Origin: | Hefei, Anhui, China | Warranty: | One Year Warramty |
| Horizontal Movement: | 330 Degree | Certification: | CE / ISO Etc. |
| User Manual: | English Version | Voltage: | 220v , 50 Hz |
| Highlight: | Robot Palletizing System 130kgs,Beverage Industry Robot Palletizing System,Palletizing Robot Arm 130kgs |
||

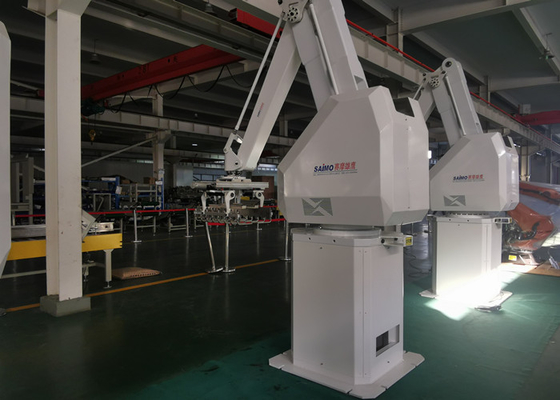

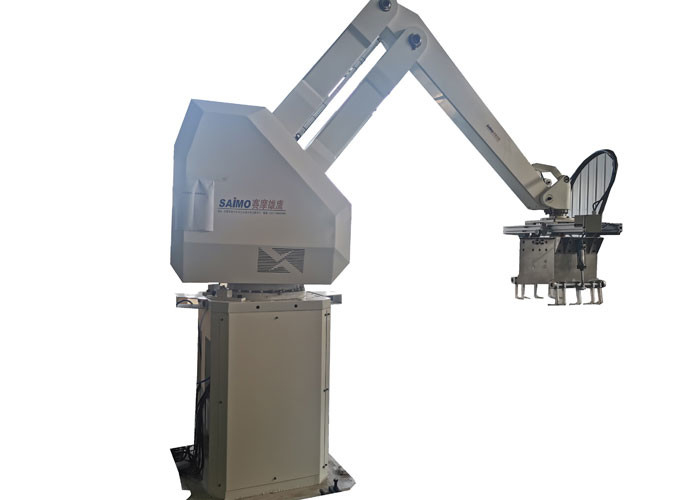

4 Axis 130kgs Palletizing Robot Friendly Arm In Food And Beverage Industry
Basic Introduction
SR series robot has unique linear actuator, energy-saving, environmentally friendly arm design, and simple operation interface formulate gripper, which can customize professional robot solutions for different production lines and materials. Its excellent accuracy, speed, and efficient and stable performance enable a robot to complete the palletizing requirements of multiple production lines at the same time. Robot load capacity 120KG-300KG, can be suitable for feed, chemical, grain and oil, food, building materials, daily chemical, alcohol, beverage, medicine, home appliances, 3C electronics and other industries.
Technical Parameter
| XY-SR130 Palletizing robot Technical Parameter | |||
| Model No. | XY-SR-130 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight(contains weight of gripper) | 130kgs | ||
| Handing Capacity | 1500 Times/Hour | ||
| Movement Axis | Normally 4 axis: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1300mm | |
| B-Axis(Vertical) | 2100mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 4.5KW | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight (not contains weight of gripper) | 800kgs (+/-10%) | ||
Function Advantages
A. Touch-screen operation achieves man-machine communication, displaying the production speed, failure reason and position.
B. The product palletizing patterns, pallet supply and discharging can all be programmed by PLC.
C. Palletizing pattern is easy to adjust on the touchscreen.
D. Carton supply system adopts brake motor control to ensure carton conveying according to pre-set position.
E. Pallet magazine has a high capacity of 12-15 empty pallet ensuring automatically pallet supply.
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
5. Precise positioning of the pallet position.
6. Easy to choose the job and writing mode.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will
go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.
It normally costs 10 days for the commissioning service, and we supply 1-year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD 60-100 are on client’s account.
Package and Shipping
Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: What’s your terms of payment?
A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.
Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
