Product Details:
|
| Horizontal Movement: | 330 ° | Axis: | 4 Axis |
|---|---|---|---|
| Packaging Material: | Plastic, Paper, Film Etc. | Controller: | PLC |
| Movement Method: | Circle Coordinate Type | Other Name: | Palletizing Robot Arm |
| Product Capacity: | Multi Lines, 8s Per Cycle | Voltage: | 380V / 50Hz/ 60 Hz |
| Highlight: | Multi Line Bag Palletizer,Robotic Arm Bag Palletizer,Fertilizer Line Bag Palletizer |
||

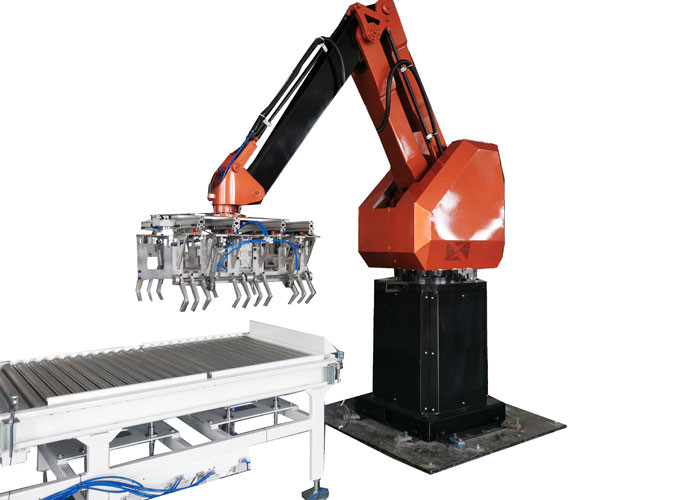

Multi-Line Palletizing Robotic Arm Bag Palletizer In Fertilizer Line
Introduction
Eagle XY-SR serious palletizing robot is four-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and hand axis.
The multilayer of palletizing enables the fork moves them into storehouse. This equipment adopts PLC touch screen and intelligent managing which us not only simple and easy to master, but also reduce labor.
Product Application
The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.
Technical Parameters
| Item | Eagle | ||
| Model | XY-SR130 | XY-SR210 | |
| Number of axes | 4 Axes: A B C D (can be 6 axes) | 4 Axes: A B C D (can be 6 axes) | |
| Movement Method | Circle pass coordinate type | Circle pass coordinate type | |
| Installation | On floor | On floor | |
| Palletizing weight(contains weight of gripper) | 130kg | 210kg | |
| Handing Capacity | 1500 times/hour | 1700 times/hour | |
| Movement Range | A Axis(Horizontal) | 1300mm | 1500mm |
| B Axis(Vertical) | 2000mm | 2300mm | |
| C Axis(Body) | 330° | 330° | |
| D Axis(Gripper) | 330° | 330° | |
| Location Repeat Accuracy | ±0.5mm | ±0.5mm | |
| Power | 4KW | 6.5KW | |
| Teaching Method | Manual teaching / teaching support / teaching exemption (optional) | ||
| Robot Weight | 800kg | 1300kg | |
Function Characteristics
User-friendly color teach pendant on robot standard operator panel (SOP) for easy troubleshooting and fault detection
System comes with three (3) stacking patterns
Collision guard software prevents accidental damage to the robot’s bag gripper or to other equipment inside the cell
Pallet stoppers accurately position empty pallets
Complete safety fences with safety light curtains
Fanuc Dual Safety option (DCS)
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
5. Precise positioning of the pallet position.
6. Easy to choose the job and writing mode.
Electric Parts
Package and Shipping
Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
