Product Details:
|
| Weighing Accuracy: | ±0.2-0.5% | Packing Speed: | 480-600 BPH |
|---|---|---|---|
| Voltage: | 280V / 380V / 415 V | Controller: | PLC And Touch Screen |
| Material Feeder: | Screw Filler / Gravity Filling / Others | Package Material: | Plastic , Paper, Film Compound Etc. |
| Weighing: | Sensor | Origin: | China |
| Highlight: | Pp Woven Bag Grains Packing Machine,Grains Packing Machine With 304SS Hopper,Barley Grains Packing Machine |
||

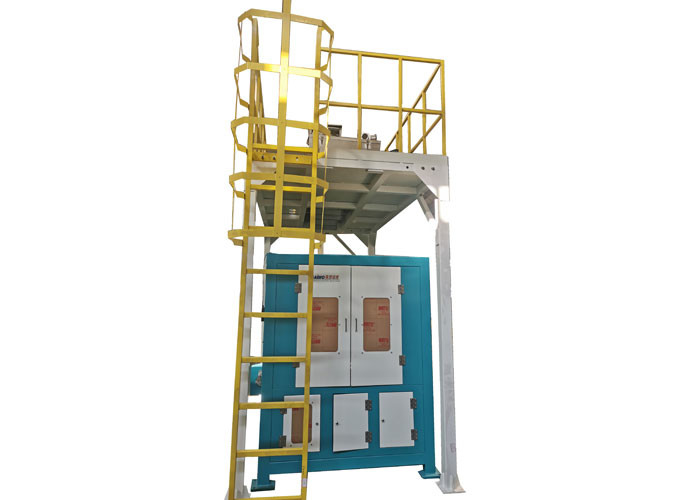

Pp Woven Bag Grains Packing Machine With 304SS Hopper For Barley In Grains Industry
General Description
- SXPA50 Series Packing Machine Unit Is Specially Designed For Pre-Made Big Sack Auto Bag Feeding And Packing At High Speed So As To Improve Customer’s Production Efficiency;
- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;
- Equipping With Different Kinds of Weighing System, the Machine Unit Can Pack Powder Material As Well As Granular Material
Application
Applicable to many industries, including the chemical industry, cereal, food, pharmacy, fertilizer, seed, feed, and additives, etc., and mainly targeted at the full-automatic high-speed measurement and packaging of granular, loose and flake-like materials
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 220V 380V 50Hz 60Hz14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Description of functional modules

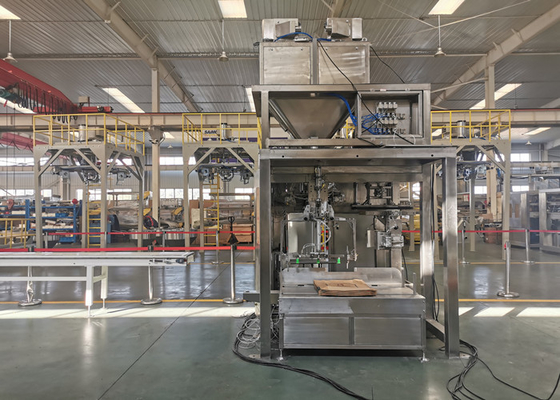

Functional modules include (Fig. 1):
1. Storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.
2. 25-50KG double-head weighing machine: quantitative metering and supply.
3. Working platform: used for equipment inspection and maintenance.
4. Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;
5. Seam sealing machine: stitching, rubber covering and adhesion of packaging bag mouth.
6. Finished product conveyor: automatically outputs already packaged finished bags.
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Machine Feature
High speed weighing scale.
Bag-clamping movement and discharge gate are using two independent systems which make the bag clamping more stable
Using the big finger cylinder can make sure the bag mouth to be smooth.
It adopts plastic chain plate conveyor belt, gear meshing transmission, which is not easy to slip and deflect; the conveyor belt and the upper guide bag mechanism adopt mechanical linkage to ensure the synchronization of the conveying process.
All the major motoring are using servo motors. It’s very easy to adjust for different packing specifications, no need manual adjustment.
