Product Details:
|
| Type: | Bulk Packing Machine | Weighing Accuracy: | ±0.3 |
|---|---|---|---|
| Material: | Carbon Steel/ 304SS /316SS | Weighing Range: | 10-50kg, According To Bag Size |
| Packing Speed: | 200-400 B/H | Material Feeder: | Gravity Filling/ Free Filling |
| Package Material: | Plastic , Paper, Film Compound Etc. | Usage: | Filling Weighing Sealing Conveying |
| Highlight: | Pet Food Granular Filling Machine,Food Industry Granular Filling Machine,400 B/H Granular Filling Machine |
||

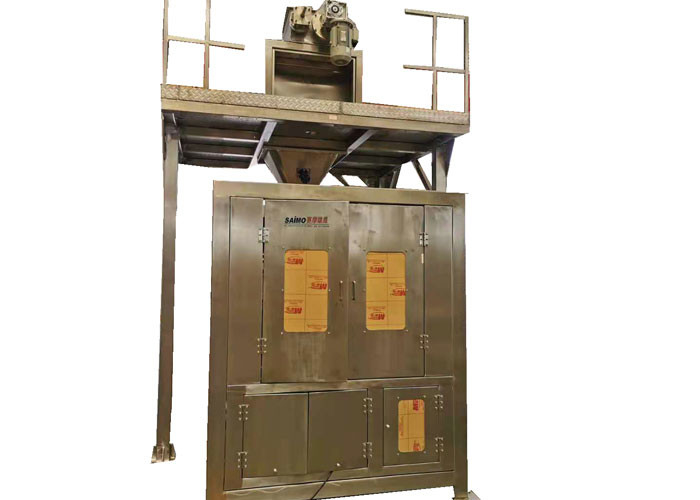

Electrical Spare Parts Granular Filling Packing Machine For Pet Food In Food Industry
Introduction
Automatic Weighing And Packing Machine is suitable to use in packing the high accuracy and easy fragile material , such as : puffy food ,crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate ,pet food , small wares etc .
Automatic Weighing And Packing Machine Characteristics
1, Small in machine size, occupy less installation space;
2, Machine parts contact product use Stainless Steel for anti-corruption, also can make machine with whole Stainless Steel which can meets different client requirements and easy for maintenance;
3, Adopting PLC Control & Touch Screen Operating, easy to learn and operate;
4, Using imported famous brand electrical spare parts, ensuring stable working performance
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
