Product Details:
|
| Weighing Range: | 300-1500kg | Air Pressure: | 0.5-0.8 MPa |
|---|---|---|---|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Voltage: | AC380V±10% |
| Weighing Method: | Gross Weighing | Cylinder Brand: | SMC / Airtac/ Customized |
| Roller Conveyor Length: | 3-4 Meters | Frequency: | 50±10 Hz |
| Highlight: | 1000 Kg Sack Packing Machine,0.8MPa Sack Packing Machines,Huge Sack Filling Machines |
||

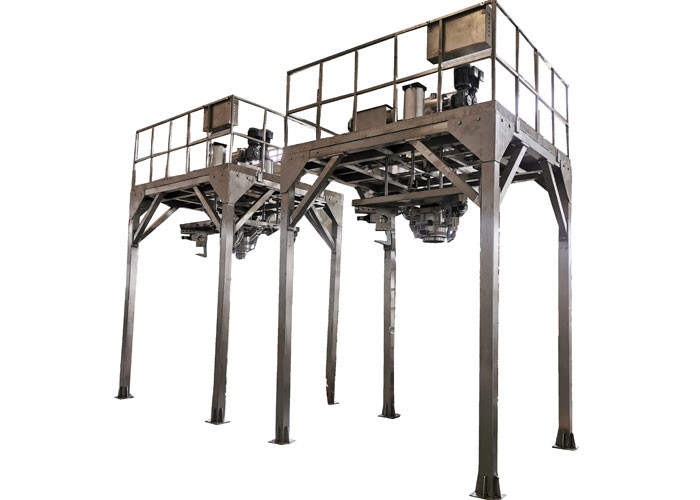

1000 Kg Huge Sack Bag Filling Packing Machine In Plastic Industry
Machine Introduction
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Machine Technicals
| Quantitative range (kg/bag) | 400~1500 kg | |
| Control accuracy (%) | Better than 0.2 | |
| Packaging speed (tons/hour) | 10-30 | |
| Type of packaging bag | PP centralized packaging woven bag | |
| Air supply source | Pressure (MPa) | 0.5±0.1 |
| Air consumption (m3/min) | 0.1 | |
| Power supply | Power supply | 380V, 50Hz |
| Power (kW) | 5.0 | |
| Working environment | Relative humidity | <95% |
| Ambient temp. | -15℃~45℃ | |
| Material | The part in contact with the material is 316L stainless steel, the rest is 304 stainless steel. | |
Machine Components List
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
Composition section of operating panel
The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.
Our Advantages
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

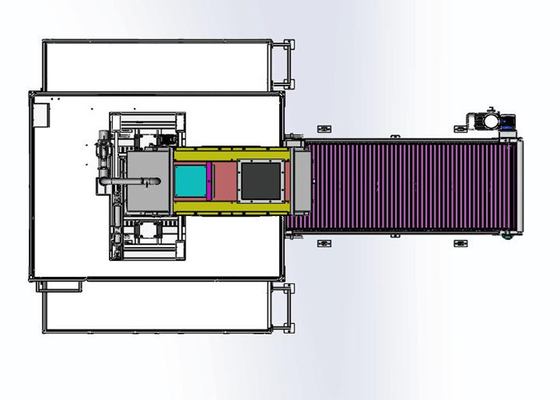

Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Machine Installation
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
