Product Details:
|
| Weighing Range: | 400-1500kg | Air Pressure: | 0.5-0.8 MPa |
|---|---|---|---|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Voltage: | AC380V±10% |
| Relative Humidity: | ＜85% | Cylinder Brand: | SMC Or Customized |
| Roller Conveyor Length: | 3-4 Meters | Material Feeding: | Auger / Belt / Vibration |
| Highlight: | Saimo Jumbo Bag Filling Machine,Plastic Industry Jumbo Bag Filling Machine,Saimo Jumbo Bag Packing Machine |
||

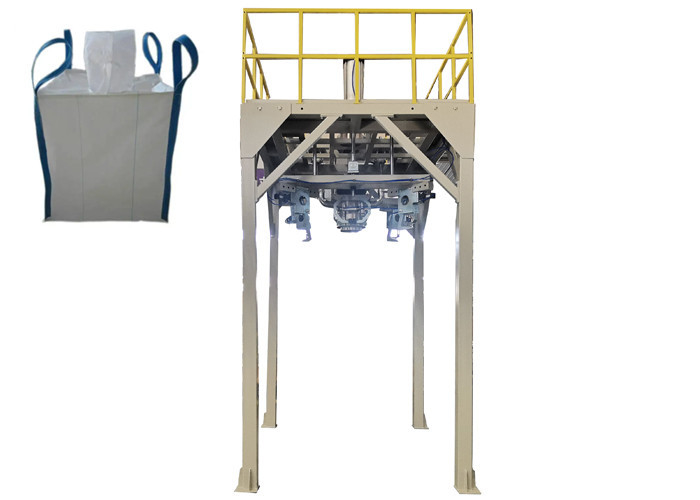

Saimo Jumbo Bag Filling Packing Machine For 1000kg Bag Granule In Plastic Industry
Machine Introduction
SXP1000 automatic quantitative packaging machine is designed for centralized ton-bag packaging of powdery and granular materials with relative good flowability, it adopts rotary valve feeding, gross weight metering, can realize such functions as manual bagging, hanging tape suspension, automatic bag clamping, automatic material feeding, automatic weighing, automatic bag release, heavy bag conveying, etc. It features compact structure, simple and convenient operation, convenient handling, and high reliability.
Machine Technicals
| Quantitative range (kg/bag) | 400~1500 kg | |
| Control accuracy (%) | Better than 0.2 | |
| Packaging speed (tons/hour) | 10-30 | |
| Type of packaging bag | PP centralized packaging woven bag | |
| Air supply source | Pressure (MPa) | 0.5±0.1 |
| Air consumption (m3/min) | 0.1 | |
| Power supply | Power supply | 380V, 50Hz |
| Power (kW) | 5.0 | |
| Working environment | Relative humidity | <95% |
| Ambient temp. | -15℃~45℃ | |
| Material | The part in contact with the material is 316L stainless steel, the rest is 304 stainless steel. | |
Machine Components List
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
Composition section of operating panel
The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

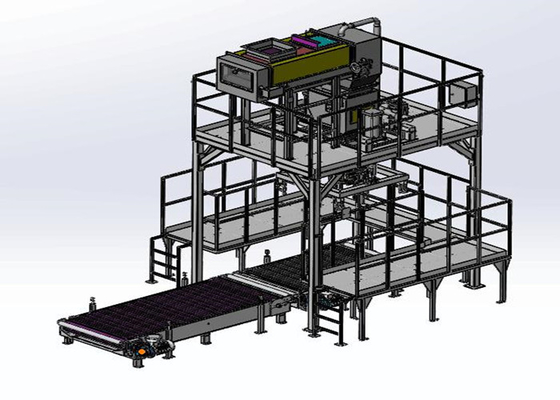

Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Machine Installation
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
