Product Details:
|
| Type: | Weighing Filling Machine | Weighing Range: | 10-50kg |
|---|---|---|---|
| Packing Speed: | 6-10 Bags / Min | Material Feeder: | Gravity / Belt Filling |
| Weighing Accuracy: | ±0.1-0.5% | Material: | SS Or Carbon Steel |
| Package Material: | Open Mouth Bag Etc. | Usage: | Filling Weighing Sealing Conveying |
| Highlight: | 10bags/min weigh filler machine,automatic weigh filler machine,25kg automatic weighing and filling machine |
||

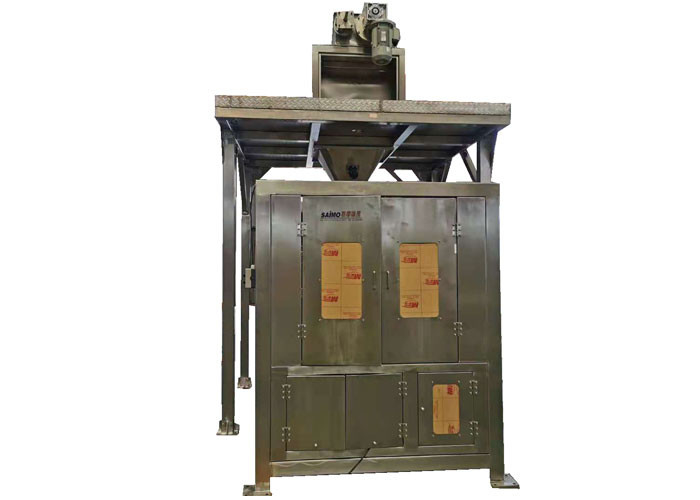

Bag Bulk 25kg Automatic Weighing And Filling Machine In Animal Feed Industry
Using range
Automatic Weighing And Packing Machine is suitable to use in packing the high accuracy and easy fragile material , such as : puffy food ,crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate ,pet food , small wares etc .
General Introduction
It is a fully automatic high-speed bagging machine, automatic weighing and filling machine, Automatic granule packing machine for 10-25kg open-mouth woven PP and paper bags.
It is distinguished by its outstanding speed and reliability as well as its high flexibility to work with all kinds of bag types and materials. Due to its technical maturity and several patented modules, the bagging system has become one of the most reliable packaging machines in the world. The bagging machine has been therefore installed in many different industries for packaging products like plastic pellets, animal feed, corn, seed, beans, lentils, sugar, rice, and so on.
Technical Parameters
| Packing speed | 200-800 bags/hour |
| Package weight | 5-25kg |
| Bag range | L:500-800 W:210-380 |
| Applicable materials | Granular materials such as rice |
| Air pressure | 0.4-0.6MPa 15m³/h |
| Power | 380/220V 6KW |
| Bag storage | 100-300 bags |
| LWH | 3520X3257X3250mm |
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Automatic Weighing And Packing Machine Characteristics
1, Small in machine size, occupy less installation space;
2, Machine parts contact product use Stainless Steel for anti-corruption, also can make machine with whole Stainless Steel which can meets different client requirements and easy for maintenance;
3, Adopting PLC Control & Touch Screen Operating, easy to learn and operate;
4, Using imported famous brand electrical spare parts, ensuring stable working performance
