Product Details:
|
| Name: | Palletising Robot | Robot HMI Origin: | PLC Control |
|---|---|---|---|
| Product Capacity: | 400-800 Packages/hour | Voltage: | 3 Phase/ 380V |
| A Axis Movement: | 330 Degree | Application: | Beverage , Food , Carton, Drum, Bag Etc. |
| Function: | Palletizing , Stacking, Placing Etc. | Robot Gripper Type: | Designed According To Product |
| Highlight: | Pick And Place Palletising Robot,Plc Pick And Place Palletizer,PLC control palletising robot |
||

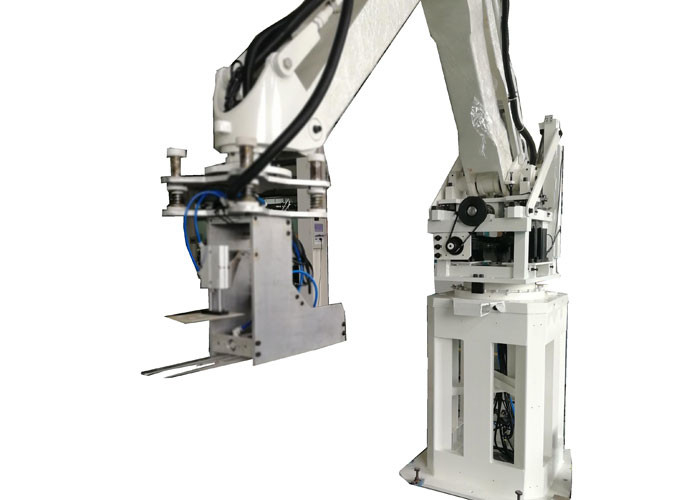

Low Cost Pick And Place Palletising Robot With Plc Touch Screen In Chemical Industry
Brief Introduction
Palletizing robots from SAIMO can meet virtually any palletizing requirement. Thanks to a wide selection of end effectors, robotic palletizers provide maximum flexibility. Whether you need to handle, cases, bags pails, jugs, drums, or any other type of container, we can provide you with adapted, reliable and highly productive palletizers for small-, medium-, and large-scale production. With hundreds of palletizing robots sold worldwide, SAIMO has developed unique expertise in the manufacturing of fast and reliable robotic palletizers. Thanks to the high quality of ABB robots and the simplicity of their design, SAIMO palletizing robots are extremely reliable and require very little maintenance.
Alternatively, contact us to receive more information about our product line or fill out our Packaging Solutions Worksheet to inform us of you specific needs. Our packaging systems experts will then find the right equipment for you.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
Features
Handles various types and sizes of bags, bales and bundles
Quick changeover of palletizing patterns through pre-stored recipes
User-friendly pallet pattern-editing interface: “Pattern Expert”
User-friendly color teach pendant on robot standard operator panel (SOP) for easy troubleshooting and fault detection
System comes with three (3) stacking patterns
Collision guard software prevents accidental damage to the robot’s bag gripper or to other equipment inside the cell
Pallet stoppers accurately position empty pallets
Complete safety fences with safety light curtains
Fanuc Dual Safety option (DCS)
Commission and After-sale Service

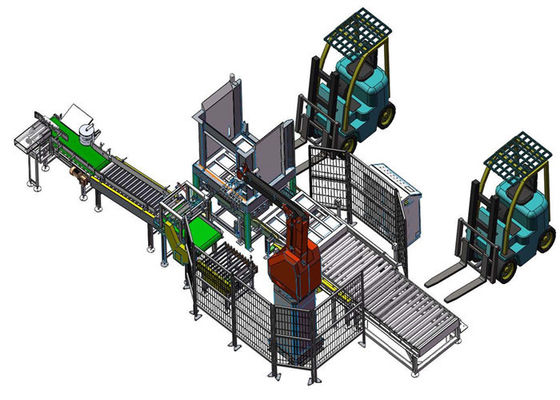

We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
