Product Details:
|
| Usage: | Transfer Bag / Carton / Other Package | Voltage: | 220 V |
|---|---|---|---|
| Power: | 15000W | Material Feature: | Dust Protection |
| Speed And Conveyor Food: | Adjustable | Package: | Exported Wooden Box |
| Working Temp.: | More Than 100° | Controller: | One Controller For Whole Conveyor System |
| Highlight: | 15000W Motorized Conveyor,Food Industry Motorized Roller Conveyor,15000W Motorized Roller Conveyor |
||

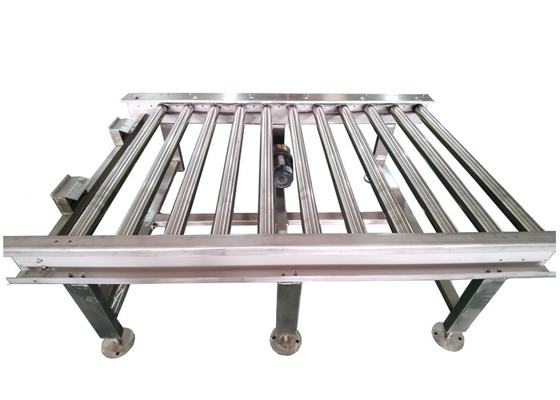

15000W Motorized Roller Conveyor For Forklift And Forking Conveyor In Food Industry
Application
The rollers machine is applicable to transport the goods whose bottom is flat. For example: electronic, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber, motorcycle, logistics etc.
Technical Parameter
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum alloy (shell) |
| 2 | Roller | Stick face diameter φ76, shaft φ28 | Galvanized |
| 3 | Outrigger | Channel steel: 100x48x5.3 | Carbon steel spray |
| 4 | Beam | Bending plate, thickness 5mm | Carbon steel spray |
| 5 | Chain | Defu//12A | Black |
Machine Models
| No. | Model | Name | Size | Note |
| 1 | XYR-DHA | Heavy pallet buffer conveyor A | Available width W=1240 | Adapt to pallet length 1000mm-1200mm |
| 2 | XYR-DHB | Heavy pallet buffer conveyor B | Available width W=1440 | Adapt to pallet length 1200mm-1400mm |
Features
Roller conveyor is composed of roller section, drive unit, chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.
Product features
● simple structure, stable running, accord with international safety standard
● modular design, easy installation and maintenance
● big bearing surface, strong carrying capacity, long service life
● used in indoor pallet conveying
Drive
Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.25, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2 kw.
Specifications
Common length range: 1000~6000mm
Effective widths depend on goods size series;
Roller
Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.
Support
Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm.
Distance between supports is determined by working condition.
Speed
Normal speed can be 12, 16, 18m/min, maximum speed can be 20m/min.
Safety
There are guards for drive part of drive unit and roller sprocket. Put caution label on the places wherever injuries may take
place to remind and avoid accidents.
Features

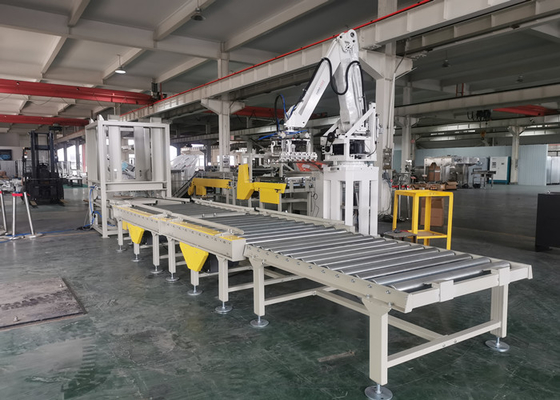

The fork-lift conveyor is a non-powered conveyor, because the palletizing conveyor and the full-stack conveyor are powered conveyors, which can provide a great thrust for the pallets of stacked products to be transferred to the fork-lift conveyor; The weight of the full pallet is very large and has a great inertia, which can also push the pallet forward.
