Product Details:
|
| Usage: | Conveying Bag / Carton | Power: | 7500W |
|---|---|---|---|
| Material Feature: | Dust Protection | Voltage: | 220 V |
| Speed: | Adjustable | Package: | Wooden Box |
| Working Temp.: | More Than 100° | Controller: | One Controller For Whole Conveyor System |
| Highlight: | Nuts Industry Motorized Roller Conveyor,Nut Industry Motorized Roller Conveyor,Adjustable motorised roller conveyor |
||

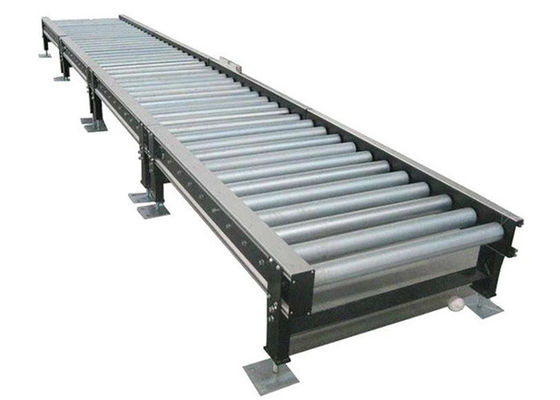

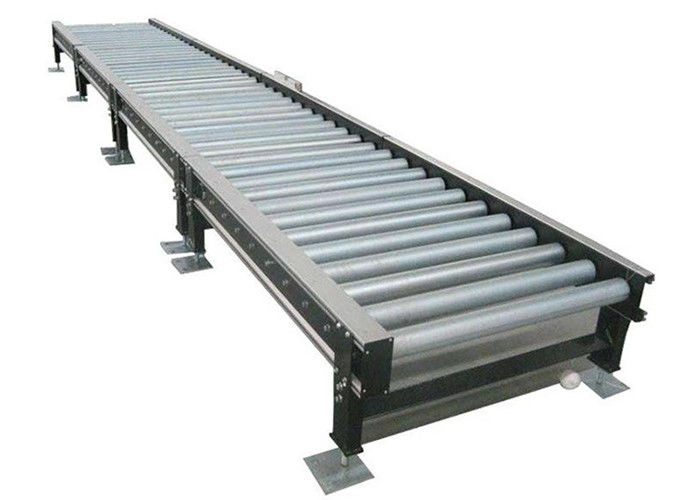

Motorized Roller Conveyor Connecting Packing Machine And Stacking Robot In Nuts Industry
Application
The rollers machine is applicable to transport the goods whose bottom is flat. For example: electronic, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber, motorcycle, logistics etc.
Technical Parameter
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum alloy (shell) |
| 2 | Roller | Stick face diameter φ76, shaft φ28 | Galvanized |
| 3 | Outrigger | Channel steel: 100x48x5.3 | Carbon steel spray |
| 4 | Beam | Bending plate, thickness 5mm | Carbon steel spray |
| 5 | Chain | Defu//12A | Black |
Machine Models
| No. | Model | Name | Size | Note |
| 1 | XYR-DHA | Heavy pallet buffer conveyor A | Available width W=1240 | Adapt to pallet length 1000mm-1200mm |
| 2 | XYR-DHB | Heavy pallet buffer conveyor B | Available width W=1440 | Adapt to pallet length 1200mm-1400mm |
Options
Side guides;
End stop;
Caster wheel with brake;
Heavy duty adjustable feet can be anchored to the ground.
Features
Roller conveyor is composed of roller section, drive unit, chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.
Product features
● simple structure, stable running, accord with international safety standard
● modular design, easy installation and maintenance
● big bearing surface, strong carrying capacity, long service life
● used in indoor pallet conveying
Drive
Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.25, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2 kw.
Specifications
Common length range: 1000~6000mm
Effective widths depend on goods size series;
Roller
Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.
Support
Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm.
Distance between supports is determined by working condition.
Speed
Normal speed can be 12, 16, 18m/min, maximum speed can be 20m/min.
Safety
There are guards for drive part of drive unit and roller sprocket. Put caution label on the places wherever injuries may take
place to remind and avoid accidents.
WHY CHOOSE US
Any inquiries will be replied within 24 hours.
Professional manufacturer. Welcome to visit our factory.
OEM available: Any of your idea will be took and we will help to design as best as we can and put it into production.
High quality, reasonable & competitive price, fast lead time.
Package and Shipping
Eagle Automation’s customers deserve timely responses when technical issues arise. That's why we staff our Aftermarket Department with experienced professional individuals who have acquired a great deal of technical knowledge over time. We're people who understand the pressure you and your company are under to satisfy your needs.
When Eagle packaging systems leave our docks it's our responsibility to ensure that they are installed successfully, meet your expectations, and can be supported for the long haul. On a daily basis we support machinery that has been in continuous use for more than 20 years. We want to do the same for you.
FAQ
Q:Are you a factory or a trade company?
A:We are the factory.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:Logistics?
A:1.Sea Shipment;
2.Air Shipment;
3.Transport by car or train;
4.Express:DHL,UPS,TNT.
Q:Payment?
A:T/T, VISA, Mastercard, L/C at sight, Alibaba trade assurance
