Product Details:
|
| Name: | Robotic Palletizing System | Voltage: | Customized |
|---|---|---|---|
| A Axis Movement: | 330 ° | Product Capacity: | 500-800 Cartons/hour (double Catch) |
| Origin: | Anhui, China | Controller: | PLC |
| Robot Gripper Type: | Designed According To Product | Machine Weight: | 500-1000kg |
| Highlight: | Food Industry 4 Axis Palletizing Robot,Four Axis Robot Palletizing System,4 Axis Robot Palletizing System |
||

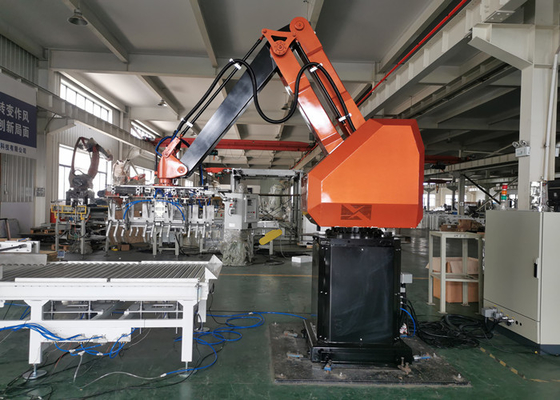

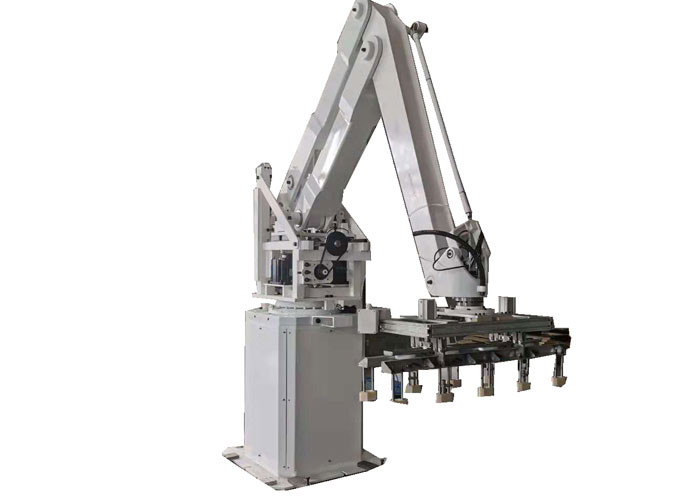

4 Axes Palletizing Robots With Palletizing Software Used In Food Industry
Product Application
The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Function Characteristics
1. PLC controller (operating can be English or any other language client required), easy to use
2. Let linear motion come true, simplify control system
3. Low power consumption, only 1/3 consumption of the same kind of mechanical stacker crane from other companies
4. Only need a little floor space, floor utilization ratio is high
5. Diverse gripper, flexibly adapt various palletizing requirements
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
5. Precise positioning of the pallet position.
6. Easy to choose the job and writing mode.
FAQ
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
