1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot

Certification
China HEFEI SAIMO EAGLE AUTOMATION ENGINEERING TECHNOLOGY CO., LTD certification
China HEFEI SAIMO EAGLE AUTOMATION ENGINEERING TECHNOLOGY CO., LTD certification
I'm Online Chat Now

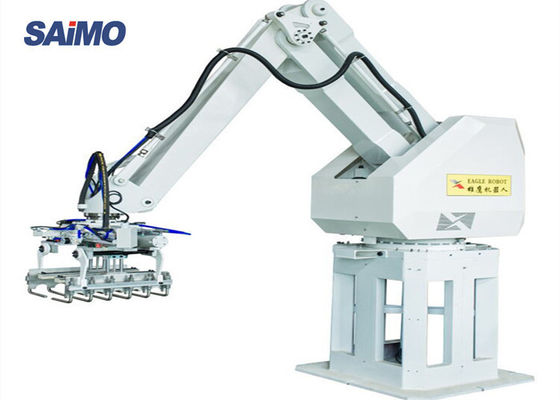

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot
1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot
1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot 1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot 1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot

Large Image :  1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot

Product Details:
Place of Origin: Hefei, Anhui, China
Brand Name: EAGLE
Certification: CE
Model Number: XY-SR130
Payment & Shipping Terms:
Minimum Order Quantity: One unit
Price: Negotiable
Packaging Details: Film wrapped and packed in wooden case
Delivery Time: 30-40 working days
Payment Terms: L/C, T/T
Supply Ability: 50 units/month

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot

Description
Axis: 4 Axes Controller: PLC
Horizontal Movement: 330 Degree Movement Method: Circle Pass Coordinate Type
Packaging Material: Plastic, Paper, Film Etc. Other Name: Stacking Robot
Installation: Drawing And Online Supported Voltage: 380V / 50Hz-60Hz
Highlight:

Bag Palletizer Robot

,

50kg Palletizer Robot

,

PLC Palletizer Robot

50kg Bag Palletizer Robot With Auto Pallet Feeder In Rubber Plastic Industry



Product Application



The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.



Introduction



The multilayer of palletizing enables the fork moves them into storehouse. This equipment adopts PLC touch screen and intelligent managing which us not only simple and easy to master, but also reduce labor.

Eagle XY-SR serious palletizing robot is four-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and hand axis.




Technical Parameters


Item Eagle
Model XY-SR130 XY-SR210
Number of axes 4 Axes: A B C D (can be 6 axes) 4 Axes: A B C D (can be 6 axes)
Movement Method Circle pass coordinate type Circle pass coordinate type
Installation On floor On floor
Palletizing weight(contains weight of gripper) 130kg 210kg
Handing Capacity 1500 times/hour 1700 times/hour
Movement Range A Axis(Horizontal) 1300mm 1500mm
B Axis(Vertical) 2000mm 2300mm
C Axis(Body) 330° 330°
D Axis(Gripper) 330° 330°
Location Repeat Accuracy ±0.5mm ±0.5mm
Power 4KW 6.5KW
Teaching Method Manual teaching / teaching support / teaching exemption (optional)
Robot Weight 800kg 1300kg



Function Characteristics



Reliability - long uptime

Fast - Short cycle times, the robot is specially optimized for packaging application.

High precision - components production is in high quality and stability so that the robots has a very high accuracy.

Strong function - a wide range of applications.

Versatility - Flexible integration and production.

We will recommend our customers different models robot palletizers based on their products and requirements.
PLC controller (operating can be English or any other language client required), easy to use



Software Unit



1. Convenient to confirm the status of the pallet.

2. Precise positioning of the pallet position.

3. Easy to choose the job and writing mode.

4. Chinese and English or other language supplied operating.

5. Main machine parts use famous brand motor like SEW.

6. Built-in palletizing software package.


Electric Parts

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot 0

Package and Shipping

Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot 1

1500times/H Stacking 4 Axes PLC 50kg Bag Palletizer Robot 2


Customize Contact Us







You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.



The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.

1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
