Product Details:
|
| Automatic Grade: | Semi-automatic | Weighing Range: | 500-2000kg |
|---|---|---|---|
| Package Type: | Ton Bag | Machine Material: | Stainless Steel Or Carbon Steel |
| Voltage: | 220V/380V/50HZ Or Customized | After-sale Service: | One Year Free Warranty |
| Optional Part: | Hydraulic Platform / Roller Conveyor | Automatic Bag Clamp:: | Sensor Control |
| Highlight: | 2000kg Jumbo Bag Packing Machine,0.8MPa Jumbo Bag Packing Machine,Pneumatic Ton Bag Packaging Machine |
||
0.2% Precision Large Bag Packaging Machine In Inorganic Salt Industry
Brief Introduction

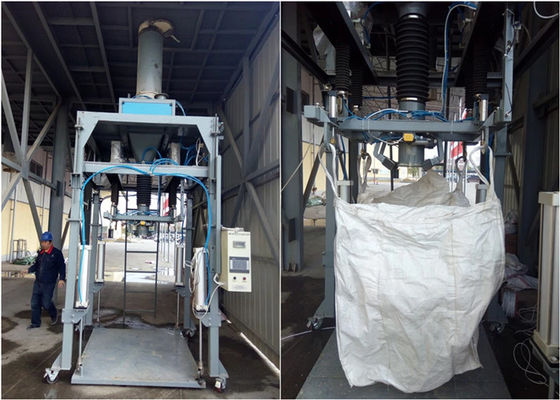

SXP1000 automatic quantitative packaging machine is designed for centralized ton-bag packaging of powdery and granular materials with relative good flowability, it adopts rotary valve feeding, gross weight metering, can realize such functions as manual bagging, hanging tape suspension, automatic bag clamping, automatic material feeding, automatic weighing, automatic bag release, heavy bag conveying, etc.
Details
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Features
Tailored to characteristics of powder material, granule material and different requirements of factory.
The machine adopts different classifying and feeding types (direct flow, conveyor, vibration and belt) according to different material. It has features of stable performance, high packaging precision, and high-speed packaging.
High stability during control process with programmable electric control system.
Advanced dust collecting design reduces greatly dust pollution upon working circumstance. Electric platform scale like weighing system adopts Board-characteristic adjusting, and working parameter setting, has advantages of accumulated weight display, automatic peeling, automatic falling correction, high sensitivity, and strong anti-interference capacity.
Meters equipped with communication ports, available for computer connecting and networking, capable of real time monitoring and network management.
Technical Parameters
| Packaging Materials | Particle Materials |
| Packaging Model | 1T |
| Packaging Accuracy | ±0.3% |
| Qualification | ≥99% |
| Packaging Speed | 8-10 Bag/h |
| Weighing Type | Hanging Weighting, automatic constant speed bag dropping |
| Packaging Bag Type | Foursquare bag hanging, artificial tying |
| Power | Power 380V AC 50HZ |
| Air Source Pressure | 0.6-0.8MPa |
| Noisy | ≤85db |
| Materials of Machine | SS used for area in direct touch with materials, and rest carbon steel spray treatment |
| Utility Factor | Over 80% (rest for regular maintenance,breakdown maintenance) |
|
Working Environment Temp& Moisture |
-30～40℃；Moisture≦50% |

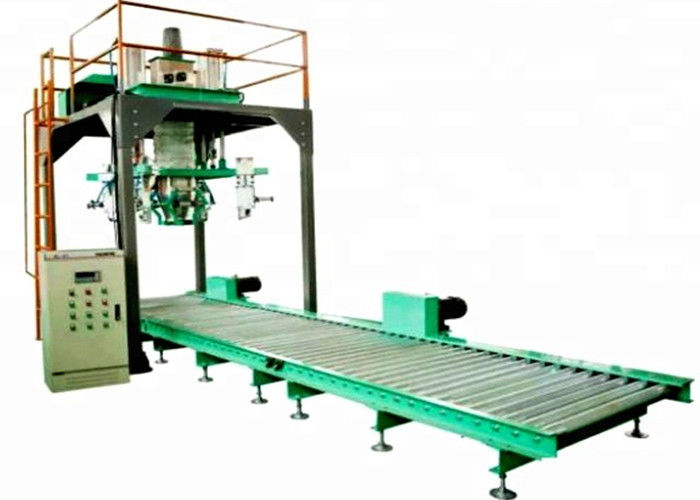

Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Working Principle
Ton bag packaging machine is a large-scale weighing and packaging equipment for ton bag packaging materials. It is a multifunctional packaging machine integrating electronic weighing, automatic bag removal and dust removal. It has a high degree of automation, high packaging accuracy, adjustable packaging speed, and superior structure. The unique hydraulic or pneumatic lifting system is particularly easy to handle ton bag packaging, and it is very convenient to handle subsequent processes.
testing-packaging and transport-after service
Packaging and Shipping
Usually to ship by sea from port Shanghai or any other Chinese port.
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
After-sale Service
We aim to best serve our clients’ needs. So, we promise the following clauses on condition of establishing business relationship with you
1) The machine shall be guaranteed by the seller against poor materials, poor performance and poor workmanship for a period of one year from the date of commissioning. During this guarantee period, the seller will provide the buyer with free maintenance and free spare parts that caused by the machine’s quality upon receipt of advice
2) The seller will respond within 2 hours if the machine goes wrong in production
3) If required, the seller will dispatch technician to buyer’s country for installation guide, commissioning & adjusting the machine and training the workers on condition that the buyer affords all the cost from China to the buyer’s company including food, accommodation, transportation, etc. and extra USD100 per day per person for the service
4) The seller will supply repair service for three years on condition that the buyer takes on all costs of the broken parts
5) The seller will supply the buyer the guide service on the operation of the machine
