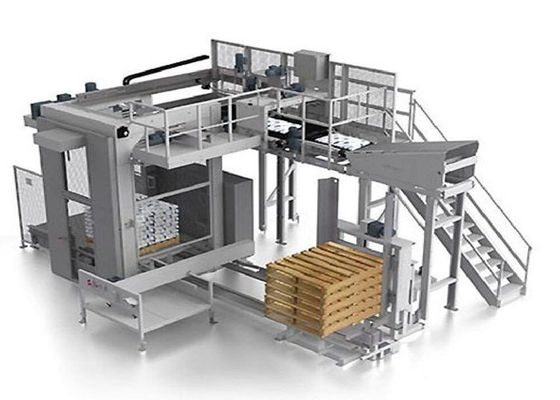

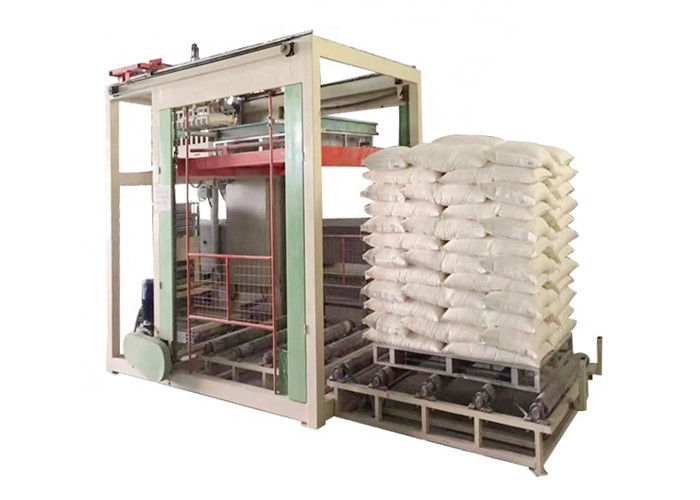

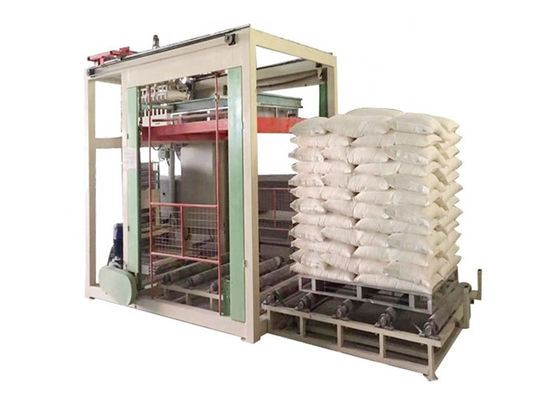

Self Installed High Speed 1000bags / Hour Bag Palletizer Machine

Packing And Stacking Palletizer Machine Self Installed , Good Performance

Working Process

1, Bags/boxes/crates travel up the in-feed conveyor

2, Slightly inclined gripper receives the bag/box/crate and places it against its back edge

3, Centralization unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width

4, Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralization unit

5, Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed

6, Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet’s dimensions

7, Sliding doors open to place layer on the pallet

8, Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer

9, Pallet drops back down slightly for next layer to be placed on a flatten surface

10, Process is repeated until pallet is complete

11, As the pallet exits, a new layer starts. The sliding doors provide buffer to allow continuous palletizing

Palletizer Features

Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number

The symmetry and compact structure design, suitable for the narrow space of the existing production sites

Taken the pallet database is big, can accommodate 15 empty pallets, which can realize automatic supply pallet. (pallet library is optional)

Don't have to change the stacking parts can complete several stacking ways, only need to obtain the parameters is ok.

1. High efficiency of automatic palletizer

2. Exquisite palletizing

3. Intelligent alarm

4. Stacking a variety of styles according to customer requirements.

5. Low requirements on working environment

6. Save stacking time, Simple operation

Technical parameters

Brief Introduction

Palletizer can put packed product to pallet and stack, then push out it in order that forklift can carry it to warehouse. This machine adopts touch screen control, realizes intelligent operation management, simple, easy to master, can greatly reduce labor personnel and reduce the labor intensity. And adopt high speed, smooth, space-saving design. One machine is multi-purpose, adjust quickly and no need to worry about replacement for product.

Application scope

It is widely used in petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals and building materials industries which has high requirements for palletizing type and high-speed palletizing after packaging, and robots cannot be used.

Our Service

FAQ

Q: Can your machine be customized?

A: Yes, we are a professional manufacturer specialized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design & technical team. We can design and manufacture as per your requirements.

Q: Can you offer overseas technical support?

A: Yes. We can send engineer to your company to set the machine and train your worker if needed.

Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.

Q: Payment terms, MOQ, warranty, Trade Terms

A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.

Palletizing Type Show
