Product Details:
|
| Warranty: | 12 Month , Lifelong Maintenance | Power: | 13 KW |
|---|---|---|---|
| Stacking Speed: | 800-1200 Bags / Hour | Function: | Carton Stacking On Pallet |
| Stacking Height: | 1300-2200mm / Customized | Voltage: | 220V / 50-60 Hz |
| Machine Size(L*W*H): | 6500*4300*1700 Mm | Machine Weight: | 13000kg |
| Highlight: | 50Kg Bag Carton Palletizer,Conventional Carton Palletizer,50Kg Bag Palletizer Machine |
||

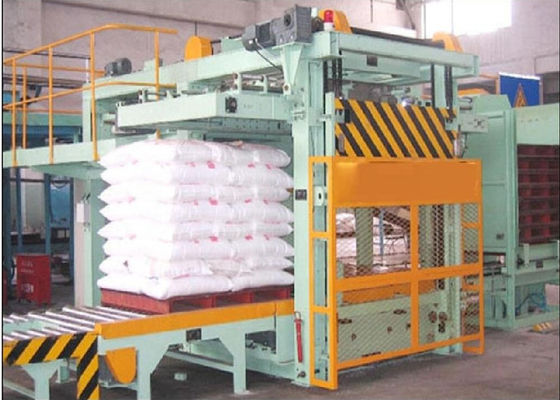

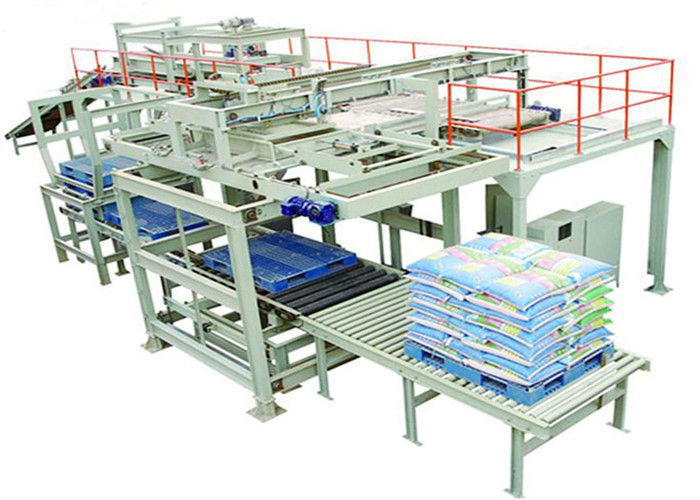

Conventional Carton Palletizer Machinery For Drink Industry , 50 Kg Heavy Bag
Palletizer Features
1.adopting electric motor transmission sliding board
2.speed up conveyor and steering gear
3.one set of side pressure device for storage place
4.power roller conveyor in stack area
5.permutation buffer
6.one set of pallets positioned
7.two branches of clapboard for permutation
8.empty pallet supplier
9.6 meters chain conveyor
Application scope
It is widely used in petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals and building materials industries which has high requirements for palletizing type and high-speed palletizing after packaging, and robots cannot be used.
Technical parameters
| Removable size | Maximum height 1500mm, or custom |
| Applicable pallet | Width 1000mm × length 1200mm or width 1100mm × length 1400mm |
|
Machine Advantage |
The machine plc programmable computer automatic controller, photoelectric switch, travel switch, pneumatic Control, etc. are used in Germany, Japan and other countries well-known brand products |
| Applicable object size | Diameter 50mm - diameter 153mm, height 50mm - high 150mm |
| Applicable objects | All kinds of bags, tin cans, glass bottles, plastic bottles, etc. |
| Dimensions | length 6.5m × width 1.7m × high 2.1m; |
| Power parameters | 3 × 380v 9kw |
Brief Introduction
High level palletizer can put packed product to pallet and stack, then push out it in order that forklift can carry it to warehouse. This machine adopts touch screen control, realizes intelligent operation management, simple, easy to master, can greatly reduce labor personnel and reduce the labor intensity. And adopt high speed, smooth, space-saving design. One machine is multi-purpose, adjust quickly and no need to worry about replacement for product.
Device function configuration
Automatic demolition mechanism
2. Automatic pallet raising mechanism;
3. Automatic sub-tank device;
4. Automatic holding machine;
5. empty canned chain conveyor;
6. Air pallets to the chain conveyor;
7. Automatic separation of cardboard bodies;
8. Using Mitsubishi (MITSUBISHI) PLC programmable computer automatic controller, SICK (SICK) photoelectric switch and other famous brand products, equipment stability, superior performance.
Our Service
| Pre-Sale | After-Sale | ||
| 1 | 24 hours online service | 1 | 12 months warranty |
| 2 | Professional engineer support technical guide | 2 | Spare parts provided in low cost |
| 3 | Special design options upon client’s conditions on site | 3 | Exclusive and unique solution by professional engineers |
| 4 | Packing under strengthen protection against collision | 4 | New technology and other related advisory services |
Package and Shipping
Automatic packing machine is usually loaded in a wooden box with surface covered plastic film. The electrical motor and spare parts will be packed by wooden case or steel frame. we also offer various ways of package or as the clients' request.
FAQ
Q: Is it possible to send me video to show how machine is working?
A: We freely invite customer to watch video through our link on the YouTube, we have to send customer installation video after placed order to us.
Q: How can I know the quality control of your machine?
A: there are two ways for customer, one is visiting us to check all equipment and test by customer, another one is test and inspect by someone from customerea
Q: what’s policy for guarantee and broken parts?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
