Product Details:
|
| Stacking Height: | 1300-2000mm / Customized | Stacking Speed: | 600-800/ 800-1200/1200-2000bags / Hour |
|---|---|---|---|
| Max Height Of Stacking: | 2400mm / Customized | User Manual: | English Version |
| Function: | Bag Stacking On Pallet | Voltage: | 380V / 50 Hz |
| Machine Size(L*W*H): | 6500*4300*1700mm | Warranty: | One Year |
| Highlight: | 1200bags / Hour Bag Palletizer Machine,Heavy Valve Bag Palletizer Machine,1200bags / Hour bag stacking machine |
||

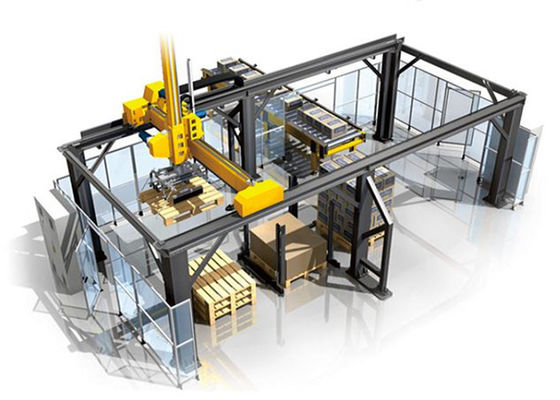

High Productivity Bag Palletizer Machine In Home Appliances Industry For Heavy Valve Bag
Brief information

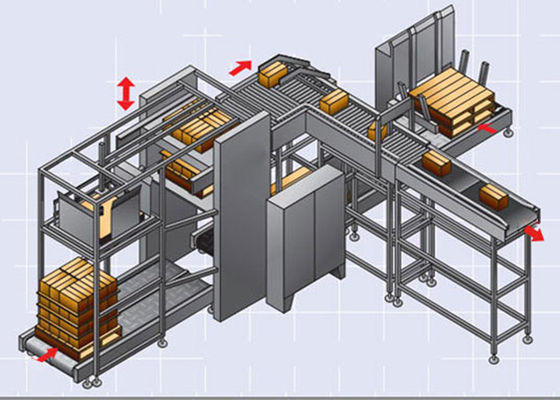

Palletizer can put packed product to pallet and stack, then push out it in order that forklift can carry it to warehouse. This machine adopts touch screen control, realizes intelligent operation management, simple, easy to master, can greatly reduce labor personnel and reduce the labor intensity. And adopt high speed, smooth, space-saving design. One machine is multi-purpose, adjust quickly and no need to worry about replacement for product.
Application scope
It is widely used in petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals and building materials industries which has high requirements for palletizing type and high-speed palletizing after packaging, and robots cannot be used.
Technical parameters
| Capacity | 10-40 Bags/Min |
| Pallet Size | L150*W150*H15cm / Customized |
| Power Supply | 380/415V,3Phase,50-60Hz |
| Stacking Height | Gear Motor |
| Machine Size | L8400 mm x W4700mm x H3700mm |
| Air consumption | 110L/min 6kg/cm² |
| Conveyor H | 850mm+-50mm |
| Pallet conveyor H | 650+-50mm |
| weight | 13000Kgs |
| Wrapping Height | 1800mm(standard); 2000/2400/2800/3200mm optional |
Machine Features
Automatic Bag Palletizer Machine can stack bigger pallet with higher level and speed compared to the robot palletizer and low-level palletizer. Automatic bag palletizer machine has the advantages of optimized construction planning and stable and reliable movement. The palletizing process is completely automatic, and there is no need for manual intervention in normal work, so it has a universal scope of application.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Our Service
1, 12 months parts and labor are warranted on all equipment supplied.
2, Providing great service, with great people on time.
3, Our company is committed to providing quality, reliable products, customer service and support.
Package and Shipping
Automatic packing machine is usually loaded in a wooden box with surface covered plastic film. The electrical motor and spare parts will be packed by wooden case or steel frame. we also offer various ways of package or as the clients' request.
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specialized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How can you guarantee quality?
A: 1. We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world-famous companies, such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
Q: Can you design the machine according to our requirements?
A: Yes. We not only can customize the machine according to your technical drawing, but also can make machine according to your requirements.
