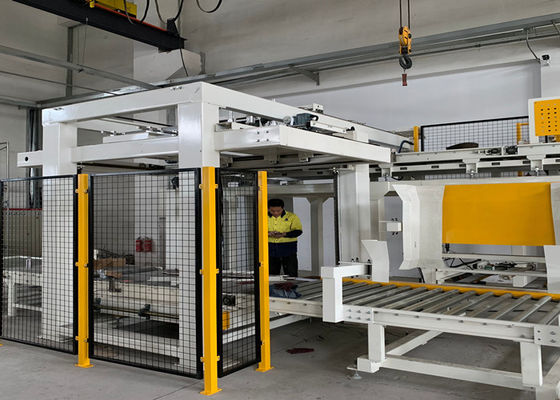

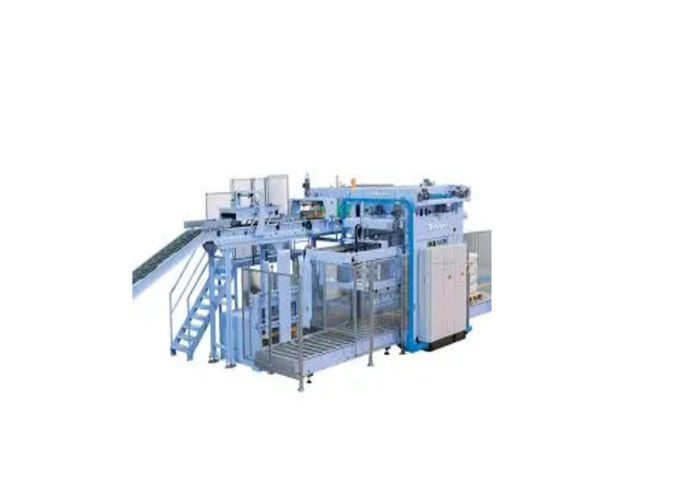

Stainless Steel 2200bags / Hour 2200mm Bag Palletizer Machine

Beverage Industry Bag Palletizer Machine Stainless Steel , Touch Screen Control

Brief information

High-Level Palletizing System can handle bags, crates or boxes in a same machine. Which ensures that a stable, tight and well-presented pallet is created.

Application scope

The palletizer is used to palletize the cartons/bags onto pallets (wood, plastic) according to certain arrangements for automatic piling. The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage. The equipment adopts PLC + touch screen control, realizing intelligent operation and management. It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity. It is designed with the concepts of high speed, stability, and space saving. It adopts split type plate release, which is faster and saves more space. With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products.

Specification and technical parameters

Working Process

1, Bags/boxes/crates travel up the in-feed conveyor

2, Slightly inclined gripper receives the bag/box/crate and places it against its back edge

3, Centralization unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width

4, Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralization unit

5, Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed

6, Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet’s dimensions

7, Sliding doors open to place layer on the pallet

8, Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer

Machine Features

1. Suitable for different kind of palletizing requirements

2. High stability, piling type

3. Easy operation, high palletizing capacity

4. Applicable to pallets of different material and sizes

5.Cut down palletizing time and human costs, Add an Arm Loader system.

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Package and Shipping

The normal package is Brandreth and wooden box as picture. We can also pack it according to customers special request.

FAQ

Q: How can you guarantee quality?

A: 1. We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world-famous companies, such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

Q: Is it possible to send me video to show how machine is working?

A: We freely invite customer to watch video through our link on the YouTube, we have to send customer installation video after placed order to us already.

Q: How can I know the quality control of your machine?

A: there are two ways for customer, one is visiting us to check all equipment and test by customer, another one is test and inspect by someone from customer.
