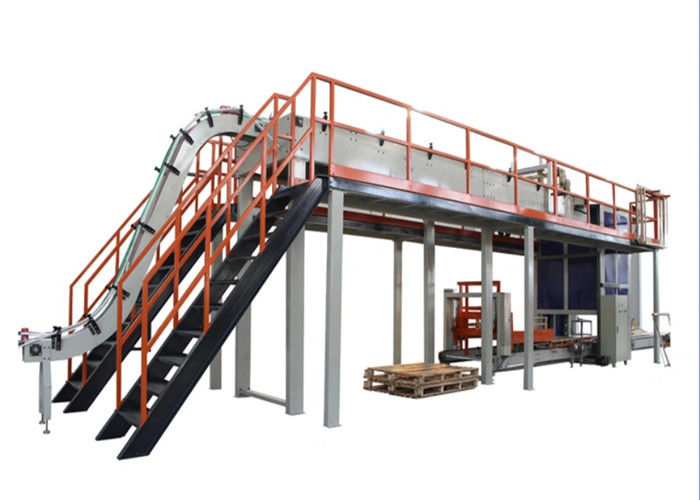

CE Certification 2400mm 220V Automatic Palletizer Machine

CE Certification Feed Industry Bag Palletizer Machine , 2400 Mm Palletizing Height

Brief information

The machine is mainly used in the canning industry, the bag, empty bottles, tin cans, aluminum cans and glass bottles of empty tank palletizing operations. First in the demolition of the board with the stack will be stacked out of the stack into the main room. At this time the palletizing machine through the network conveyor automatically arranged by the tank, the use of sub-tank device will be finished empty cans in accordance with the required empty canned body size of the whole column, and then by the tank device to empty the tank to the pallet master room , And finally by the main room of the lifting mechanism to complete the layered tank action. When the stack is good, the empty canned body is sent to the automatic winding film machine for film winding for easy storage and delivery. The whole work process has automatic demolition board, board, lift, automatic sub-tank, code tank, automatic drop, stacking, automatic winding film, etc., to replace the artificial code tank way, save manpower, greatly improve production efficiency.

Application scope

The palletizer is used to palletize the cartons/bags onto pallets (wood, plastic) according to certain arrangements for automatic piling. The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage. The equipment adopts PLC + touch screen control, realizing intelligent operation and management. It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity. It is designed with the concepts of high speed, stability, and space saving. It adopts split type plate release, which is faster and saves more space. With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products.

Specification and technical parameters

Working Process

1, Bags/boxes/crates travel up the in-feed conveyor

2, Slightly inclined gripper receives the bag/box/crate and places it against its back edge

3, Centralization unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width

4, Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralization unit

5, Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed

6, Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet’s dimensions

7, Sliding doors open to place layer on the pallet

8, Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer

9, Pallet drops back down slightly for next layer to be placed on a flatten surface

10, Process is repeated until pallet is complete

11, As the pallet exits, a new layer starts. The sliding doors provide buffer to allow continuous palletizing

Machine Features

1. To replace the traditional artificial cans and semi-automatic empty tank cans, can save a lot of labor, improve production capacity;

2. Using PLC control system to improve the accuracy of mechanical action, and easy to operate;

3. High degree of automation, can achieve "control system";

4. Applicability is wide, can use a variety of cans and so on.

Package and Shipping

The normal package is Brandreth and wooden box as picture. We can also pack it according to customers special request.

FAQ

Q: Is it possible to send me video to show how machine is working?

A: We freely invite customer to watch video through our link on the YouTube, we have to send customer installation video after placed order to us already.

Q: How can I know the quality control of your machine?

A: there are two ways for customer, one is visiting us to check all equipment and test by customer, another one is test and inspect by someone from customer.

Q: How can you guarantee quality?

A: 1. We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world-famous companies, such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.
