Product Details:
|
| Driven Type: | Electric | Controller Type: | PLC |
|---|---|---|---|
| Palletizing Type: | OEM | Language: | English Or Other Customer Required |
| Pallet Magazine: | It Can Store 12 Empty Pallets Each Time | Application: | Bag/carton/box-like |
| Voltage: | 380V Or Customized | Certification: | CE |
| Highlight: | 25kg Bag Palletizer Machine,Multi Line Bag Palletizer Machine,25kg box palletizer machine |
||

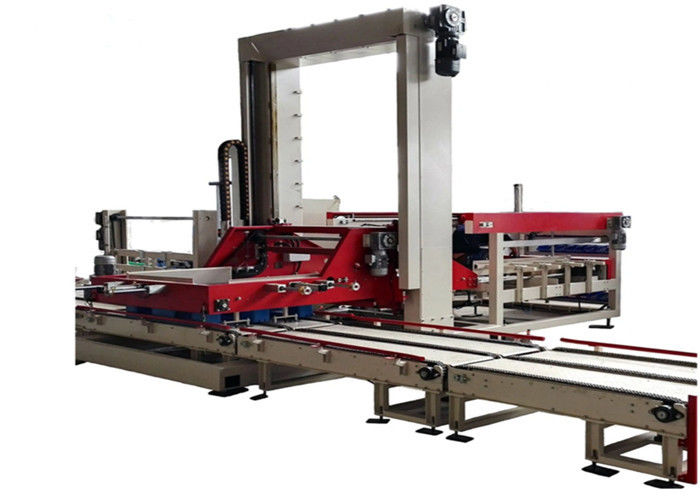

3 phases High precision Bag Palletizer Machine In Chemical industry , Multi-line palletizing
Brief information
Automatic high level bag palletizer can stack bigger pallet with higher level and speed compared to the robot palletizer and low level palletizer; high-levelr palletizer is a dedicated high-speed automatic palletizing Equipment. High-level palletizing machine will be transport bags to a certain height, according to PLC program, then bags will be translocated, grouped, pushed and stacked on the pallet, finally the full pallet will be conveyed out the system.
Application scope
It is widely used in petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals and building materials industries which has high requirements for palletizing type and high speed palletizing after packaging, and robots cannot be used.
Specification and technical parameters
| Model | SMK2200 |
| Palletizing speed | 1200bags/min (25kg) |
| Palletizing type | 5 bags/layer, 12 layers/pallet |
| Total power | 25KW |
| Machine noise | ≤75db |
| Power type | 3 phase 380V/50Hz |
| Air consumption | 250L/min(0.6MPa) |
| Working pressure | 0.6MPa |
| Pallet size | 1300Lx1100Wx130H |
| Machine weight | 13000Kg |
Working Principle

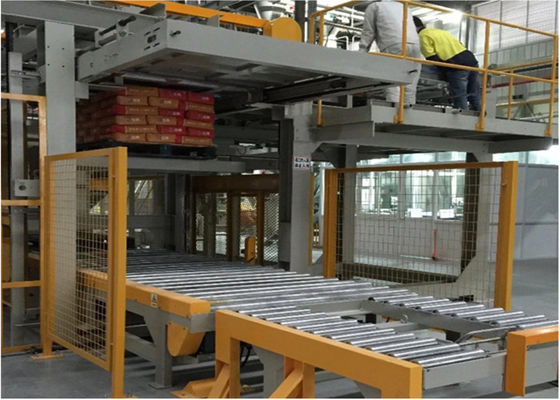

High-level palletizing is combined by climbing conveyors, slow-stop shaping machines, direction changing machine, grpuping machine, bag pushers, layer machine, elevators, pallet warehouses, pallet conveyors, palleting conveyors, elevated platforms, and control systems. It is characterized by high stack quality, neat stack shape and not loose. The upper and lower conveyors are used to press the bag to shape the package to form a regular rectangular shape. The control system uses Siemens (SIEMENS) programmable controllers, inverters, photoelectric switches and magnetic switches to form the main body of the control system to achieve the entire coordinated contro of transportation, grouping, and stacking.
Machine Features
Fully automatic bag palletizer is suitable for palletizing of big bags, such as fertilizer, flour, cement, rice, chemical raw materials and feed stuffs. The use of touch-screen operation is to achieve man-machine dialogue, which show the production speed, the cause of the malfunction and location, a high degree of automation. It uses PLC programmable bag sorting layer stacking, and pallet supply and discharge can be programmed into the program control. High quality chain with good wear resistance ensures high precision, stable transmission and so on. Imported pneumatic components and cylinders ensures high quality and reliable performance.
Package and Shipping
Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
We can also transport the machines by flight, all depend on client's requirement.
FAQ
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what’s the package?
A: All goods are packed in wooden box
Q: Do you offer Installation & debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
