Product Details:
|
| Weighing Range: | 20-50 Kg | Packing Speed: | 2-5 Bag Per Minute |
|---|---|---|---|
| Transport Package: | Wooden Box | Voltage: | 220V 50/60Hz Single Phase |
| Measurement: | Load Cell | Origin: | Hefei, Anhui, China |
| Air Source: | 0.6MPa, 0.4-0.6m3/min | Machine Material: | 304SS / SS304/SS316 / Carbon Steel |
| Highlight: | 1000g Vertical Pouch Packing Machine,304SS Vertical Pouch Packing Machine,1000g automatic vertical packing machine |
||

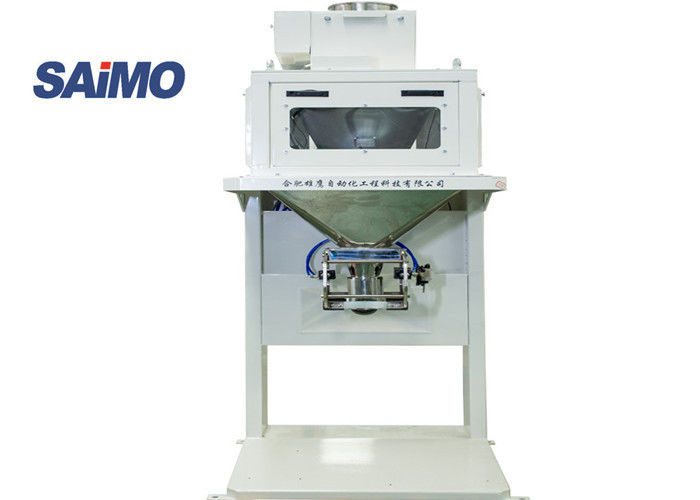

Seasoning Industry Used 25 Kg Granule Salt Bag Packing Machine , Stainless Steel
Machine Details Description
Application Scope

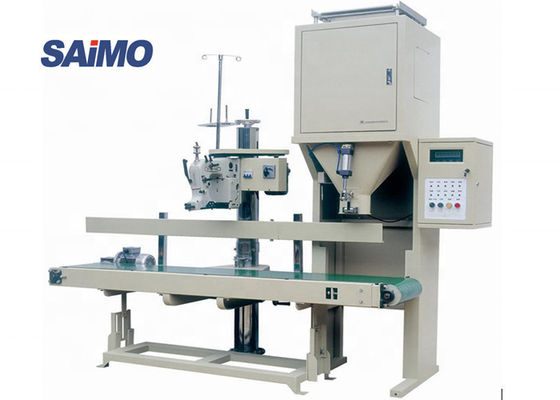

SXP50G Machine Unit Line is consisted of the main weighing machine, the 3 meters belt conveyor and auto sewing machine; The machine unit is suitable for customers who pack PP Woven Bag and mainly suitable for granular material.
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Technical parameter
| Machine type | SXP25G |
| Weight range kg | 5-25 kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
|
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Machine Features
Depending on customer's specific needs for packing, the machine can equip with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand to form whole packing and palletizing line
Electronic touch screen, easy operation
Independent suspension sensors, signal stability, ensure the weighing accuracy
Infrared sensor, two speed feeding system, weighing precision is high
Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover
Cooperate with feeding machine, conveyor, sealing machine optimal automation control, improve efficiency to reduce Labor intensity
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
Our Service
Pre-Sales Service
1.Inquiry and consulting support, professional packing solution for free.
2.Machine videos for your reference.
3.Sample testing support.
4.View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide the solution within 2 hours.
* Engineers can speak English to help.
Package and Shipping
Packing:
Packing Details: Standard Export Plywood Case.
Shipping & Payment:
1: T/T and Western Union are accepted.
2:30% deposit before production and 70% balance before shipment.
3: After receive the deposit, we will start to produce.
Usually 5-25 working days will finish (depend on customer’s requirements).
FAQ
Q: Where are you located?
A: Our factory is in Hefei city (2 hours high-speed train from Shanghai). Airport name is HFE.
Q: Can your machine meet our needs well?
A: After receiving your inquiry, we will confirm your
1. Your pack weight per pouch, pack speed, pack bag size (it is the most important).
2.Show me yours unpack productions and pack samples picture.
And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
