Product Details:
|
| Application: | Granule | Measurement: | Load Cell |
|---|---|---|---|
| Protection Grade: | IP65 Protection | HS Code: | 8422400000 |
| Voltage: | 220V 50/60Hz | Capacity: | 300-500 Bags Per Hour |
| Air Source: | 0.6MPa, 0.4-0.6m3/min | Packing Weight: | 10-30kg/bag |
| Highlight: | 4000ML Vertical Pouch Sealing Machine,4000ML vertical packing sealing machine,4000ML automatic vertical packing machine |
||

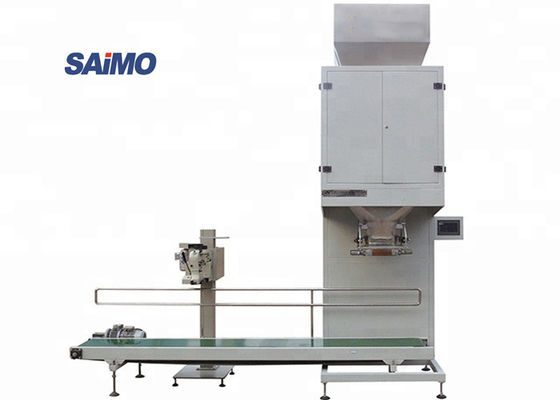

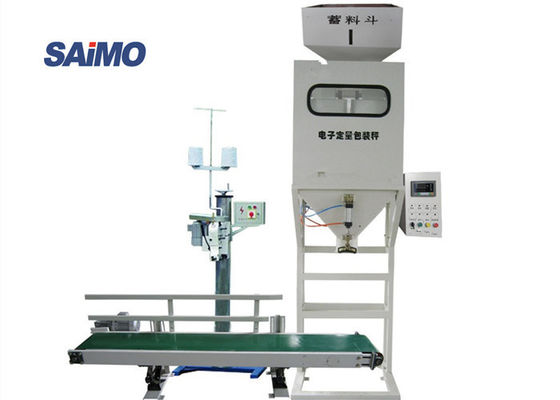

10kg 30kg 50kg Heavy Bag Bagging Machine , Sewing Machine In Agricultural Industry 5 Kw
Product Application
Automatic weighing packaging for granule, loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries
Features
All the working parameters are input on the mimic panel.
Auto minus of the weight and auto zero resetting.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Touch screen for easy operation
Technical parameter
| Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Machine Detail Introduction
Product Process
Obtain raw materials, cutting, laser, shearing, bending
Assembling, welding
Surface treatment: grinding, polishing, pickling
Assembling, finish circuit boards
Test machine before delivery
Packaging and Shipping
Packaging
We use the wooden case to pack our packing machine
Shipping
Upon receipt of payment , delivery date will be in 10-35days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
FAQ
Q: How about the after-sale service?
(1) More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: What are your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q: What about your Guarantee of quality?
A: The machine is 1-year warranty, all machine part can be replaced for free within 1year if broken (not including man made). And offer lifetime after sale service
