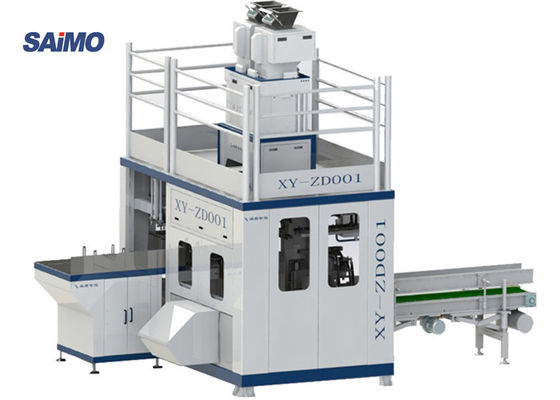

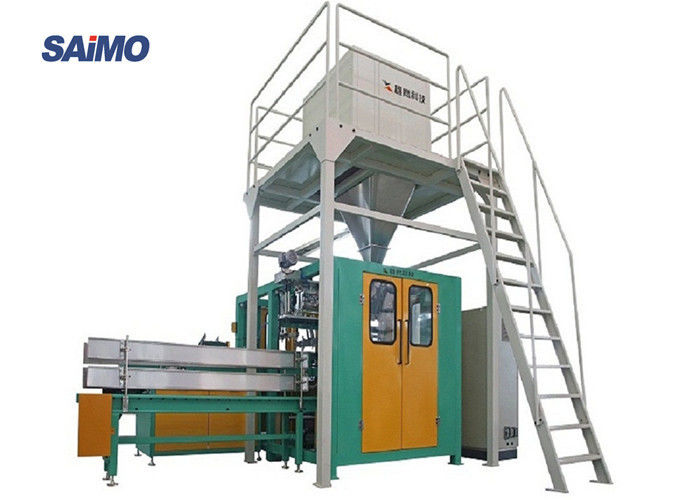

Animal Feed Industry 60Hz 20kg Bag packing machine 380 V

Animal Feed Industry 60Hz 20kg Bag Packing Machine 380 V

General Introduction

- SXPA50 Series Packing Machine Unit Is Specially Designed For Pre-Made Big Sack Auto Bag Feeding And Packing At High Speed So As To Improve Customer’s Production Efficiency;

- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;

- Equipping With Different Kinds of Weighing System, the Machine Unit Can Pack Powder Material As Well As Granular Material

Machine Developing Background Introduction

- With the world society developing at an amazing speed, the labor cost and the working efficiency has already become a major concern of many big enterprises. Meanwhile, how to improve the packing technology and help customers to solve their problem also becomes a big target for all the packing machine manufacturers

Application Scope

Our new packaging machine unit designed for large bag of granule materials in chemicals, fertilizers, feeds, seeds, food and other industries has functions of automatic weighing, bag, filling, package sending and sealing etc., which can complete connection with equipment like back stacking robot etc. to realize large-scale package and unmanned operation of the stacking.

Technical  Datas

Machine Details

1.1 Packaging Unit

a. Hopper:0.3m³ Cone Type hopper, equipped with function of material level alarm

b. Measuring Scale: High accurate packaging, three-sensor location weighing structure, packaging speed over 700bags/h

c. Bag storage: 200-400 empty bags storage.

d. Bag Holding Type: mechanical arm fetching

e. Bag Sealing Type: fully automatic bag thread stitching or heat sealing or other sealing type customer required.

f. Repair Platform: Lade stand, anti-slip platform and safety railing

1.2 System equipment meets engineering condition &public use.

(1) Electricity:220/380V,50Hz

(2) Power:14kw

(3) Air Supply Pressure:0.5-0.7MPa

(4) Air Consumption:1.8Nm³/min

(5) Temperature:-15℃-45℃

1.3 Machine Main components

a. Empty bag storage

b. Empty bag taking unit

c. Bag management unit

d. Bag sending unit

e. Bag upper unit

f. Bag clipping and material filling unit

g. Bag holding unit

h. Bag mouth guiding unit

i. Heat sealing / bag sewing station

j. Stand-up bag conveyor

k. Electrical control section

Working Process

Automatic bag seizing

Automatic bag opening

Automatic bag feeding & material auto filling

Bag automatic transferred by the conveyor

Auto bag sewing / heat sealing (folded)

Finished bag

Machine Features

1. The whole line is customized according to customer’s specific needs and workroom present situation to make sure all the machine suit well for the customer;

2. The machine unit line adopts famous brand electrical parts like Mettler Toledo load cell / Banner Vacuum Generator / SMC Valve / Siemens PLC & Touch Screen etc. To ensure good machine performance for customer;

3.The main packing machine shall be equipped with safe door and the robot hand shall be equipped with safety guard to ensure the worker’s safety;

4. The whole machine line shall build up a controlling cabinet for the connecting of all the machine lines;

Our Advantages

1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.

Precautions for use

Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;

Notice: please keep the equipment clean inside and outside and avoid moisture;

Notice: please do not change any part on the machine;

Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;

Packaging

* Machine packing inside is plastic films and outside is fumigation wooden case.

* Our wooden case is very strong; it can bear long time shipping on the sea.

* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer with trade team for international service.

Q: How long is your delivery time?

A: Normally 60 days after confirmed order. 45 days could be available in low season for some items (during May to July), and 85 days during new year and hot season (Jan to March).

Special cases need discuss.
