Product Details:
|
| Function: | Buffer Product | Power: | 1.5 KW |
|---|---|---|---|
| Material Feature: | Dust Resistant | Application Pallet: | Only One Type Pallet |
| Speed: | Adjustable | Package: | Wooden Box |
| Working Temp.: | More Than 100° | Controller: | One Controller For Whole Conveyor System |
| Highlight: | Heavy Bag Palletizing Conveyor,1.5KW Palletizing Conveyor,1.5KW bagging conveyor |
||

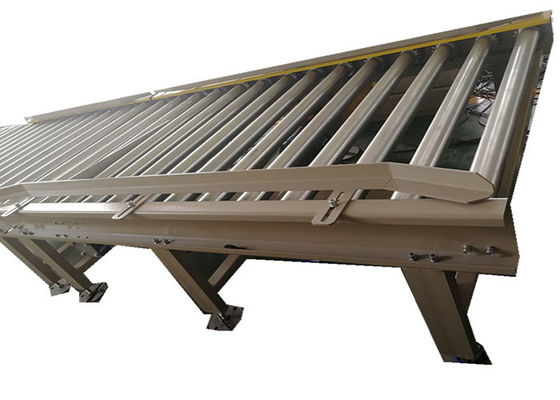

Heavy Bag Palletizing Conveyor In Seasoning Industry , Stacking Conveyor
Introduction
After the products are be stacked on the pallet by the heavy pallet conveyor, the full pallet is transported to the heavy pallet buffer conveyor. The heavy pallet buffer conveyor can buffer a stack of products, leaving effective working time for the front stacking and the next station of forklift.
Machine Models
| No. | Model | Name | Size | Note |
| 1 | XYR-DHA | Heavy pallet buffer conveyor A | Available width W=1240 | Adapt to pallet length 1000mm-1200mm |
| 2 | XYR-DHB | Heavy pallet buffer conveyor B | Available width W=1440 | Adapt to pallet length 1200mm-1400mm |
Technical Parameter
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum alloy (shell) |
| 2 | Roller | Stick face diameter φ76, shaft φ28 | Galvanized |
| 3 | Outrigger | Channel steel: 100x48x5.3 | Carbon steel spray |
| 4 | Beam | Bending plate, thickness 5mm | Carbon steel spray |
| 5 | Chain | Defu//12A | Black |
Options
Side guides;
End stop;
Caster wheel with brake;
Heavy duty adjustable feet can be anchored to the ground.
WHY CHOOSE US
Any inquiries will be replied within 24 hours.
Professional manufacturer. Welcome to visit our factory.
OEM available: Any of your idea will be took and we will help to design as best as we can and put it into production.
High quality, reasonable & competitive price, fast lead time.
Package and Shipping
Eagle Automation’s customers deserve timely responses when technical issues arise. That's why we staff our Aftermarket Department with experienced professional individuals who have acquired a great deal of technical knowledge over time. We're people who understand the pressure you and your company are under to satisfy your needs.
When Eagle packaging systems leave our docks it's our responsibility to ensure that they are installed successfully, meet your expectations, and can be supported for the long haul. On a daily basis we support machinery that has been in continuous use for more than 20 years. We want to do the same for you.
Product features
Large conveying capacity which can carry a large load
Can work under various conditions (high temperature and dust) and reliable performance
The roller conveyor has simple structure, high reliability and convenient maintenance
Other types of heavy-duty roller conveyors are gravity roller conveyor, chain drive live roller, belt roller conveyor, chain & roller transfers etc.
FAQ
Q:Are you a factory or a trade company?
A:We are the factory.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:Logistics?
A:1.Sea Shipment;
2.Air Shipment;
3.Transport by car or train;
4.Express:DHL,UPS,TNT.
Q:Payment?
A:T/T, VISA, Mastercard, L/C at sight, Alibaba trade assurance
