Product Details:
|
| Speed: | 0-60 M/min | Certification: | CE |
|---|---|---|---|
| Origin: | Hefei , China | Outrigger: | Carbon Steel Spray |
| Beam: | Bending Plate, Thickness 4-5mm | Installation: | Online Guide, Easy To Install |
| User Manual: | English Version | Controller: | One Controller For Whole Conveyor System |
| Highlight: | Bag Grabbing Palletizing Conveyor,2.2kw Palletizing Conveyor,2.2kw package roller conveyor |
||
Additives Industry Palletizing Conveyor For Bag Grabbing , Packing Conveyor
Introduction

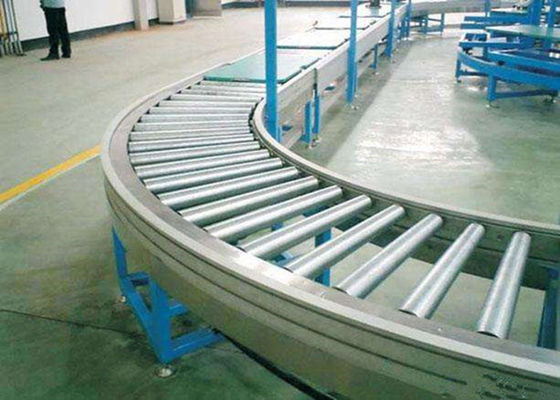

Roller conveyor is composed of roller section, drive unit, chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.
Product features
● simple structure, stable running, accord with international safety standard
● modular design, easy installation and maintenance
● big bearing surface, strong carrying capacity, long service life
● used in indoor pallet conveying
Drive
Standard conveyor is equipped with high quality reducer motor. Configuration position, output revolution and power etc of reducer motor are determined by working condition. Motor power depends on loading, conveyor speed and length etc. Common motor power can be 0.25, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2 kw.
Specifications
Common length range: 1000~6000mm
Effective widths depend on goods size series;
Roller
Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.

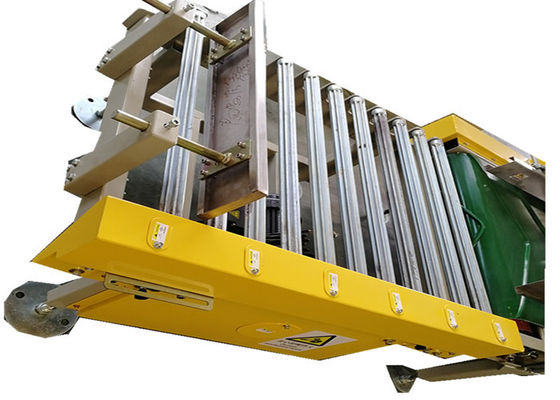

Conveyor Type - Bag grabbing conveyor
The bag is transported to bag grabbing conveyor from flatten conveyor for the robot stacking which can ensure safe and convenient working of palletizing robots and reduce noise.
| No. | Model | Name | Size |
| 1 | XYR-ZQA | Bag grabbing conveyor A | Length 1050mm, roller length 813mm, Height 750mm |
| 2 | XYR-ZQB | Bag grabbing conveyor B | Length 1050mm, roller length 813mm, Height 1000mm |
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Roller | Eagle | Carbon steel galvanized |
| 3 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 4 | Beam | Sheet metal, thickness 8mm | Carbon steel spray |
| 5 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
WHY CHOOSE US
1.We have 20 years’ experience to packing lines
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
Package and Shipping
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
FAQ
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:What's your lead time ?
A:Normally 20-30 days after we receive your deposit.
Q:Logistics?
A:1.Sea Shipment;
2.Air Shipment;
3.Transport by car or train;
4.Express:DHL,UPS,TNT.
Q:Payment?
A:T/T, VISA, Mastercard, L/C at sight, Alibaba trade assurance
