Product Details:
|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Cylinder Brand: | SMC Or Customized |
|---|---|---|---|
| Related Voltage: | AC220V±10% AC380V±10% | Machine Sizes(L*W*H): | 2800*3700*5000mm |
| Motor Type: | Servo Motor | Lifting Weight: | 2 Ton |
| Relative Humidity: | ＜85% | User Manual: | English Version |
| Selling Key Point: | Clean And Safe Unloading | ||
| Highlight: | 1000Kg Bulk Bag Unloading Station,1000Kg bulk bag dischargers,304SS Bulk Bag Unloading Station |
||

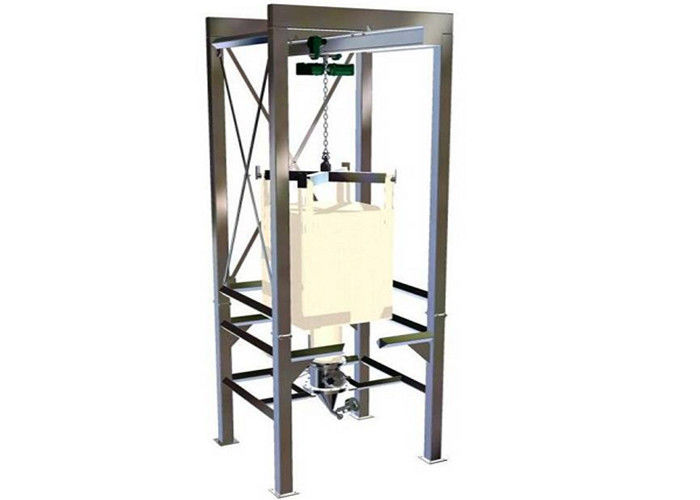

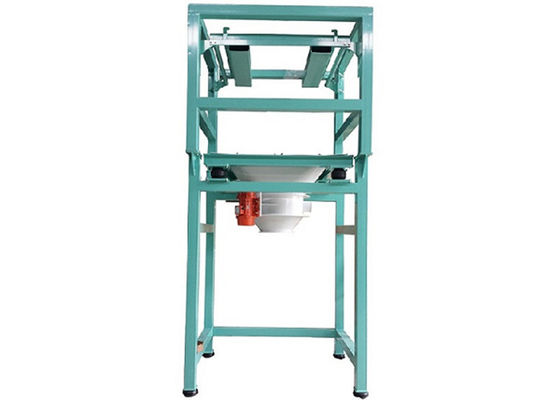

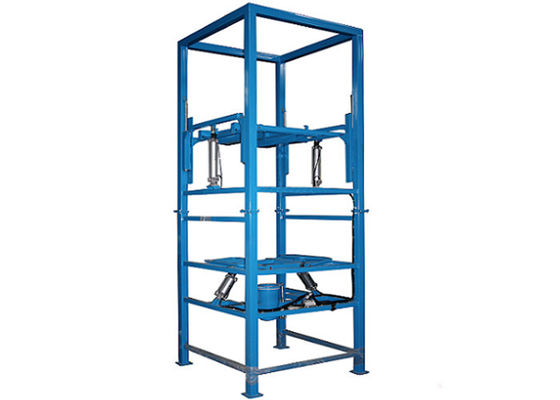

1000 Kg Big Bulk Bag Unloaded In Construction Industry , Jumbo Sack Dis-Charger , 304 SS
Brief description
Ton bags inverted bag station is used for unpacking and unloading work of bulk bags (ton bags) powder granular materials (tons of bag weight: 0.3 tons -2 tons).
Big bag discharge station is also known as big bag unloader, bulk bag emptier, FIBC discharger, FIBC unloader, FIBC emptier, super sack discharger, container bag unloader, container bag discharger, super sack unloader and super sack emptier.
Application
Always used in chemical industry, plastics, rubber, pharmaceutical, food and other industries of powder and granular material in the ton bag unpacking discharging operation, such as a large bag (ton bag) plastic resin, carbon black powder and granular materials and food additives and other dry powder and granular materials unpacking and discharging.
Advantages
Big bag unloading stations provide continuous and safe discharging of big bags.They also prevent any harmful dust spread to the environment.
Working principle
- by forklift or electric hoist to enhance the ton bags to the equipment feed port;
- manually or automatically open the discharging mouth of ton bags;
- open the flow valve and supplemented by vibration device to promote powder or granular material (in the ton bags) to rely on gravity fall into the hopper to complete unpacking discharging work.
Technical Parameters
| Technical parameters | Model | SXDX1000 |
| Unloading Speed | 10-20 bag/h | |
| Air consumption | 6m³/hour | |
| Electric Chain Block Speed | 10.05m/min | |
| Frame Material | Carbon steel, 304,304L / 316L stainless steel | |
| Power & Output | 3 phase 380V 50Hz, 2.0KW | |
| Total weight | 800kgs | |
| Machine Dimension | 1800*1800*4560mm | |
| Features |
1. Accommodate Your needs. Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs. 2. Cost efficiency: Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device. 3. Space Efficiency: Understanding the requirement of your project on envirnment and space, our professional R & D team will design the most appropriate system to suit your needs. 4. Optional Component: Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system |
|
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.
Flowing chart
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
FAQ
Q: First time cooperation, how can i believe your factory will ship the machine to me?
A: We are more than 20 years’ experience in packaging industry, and if you worry about that, we can do business by trade assurance.
or L/C etc.
Q: How can i make sure that i get the right good quality machine?
A: Before packing it, we will make the machine test, and make the testing report. and as your request, we can buy the assurance for you to protect you prohibit.
Q: What after sales service you can provide?
A: As request, we can send our professional engineers to your factory to set up the machine and training your workers, only need you to bear relate charges. and
any question you meet when using, you can contact me at any time by Skype or cellphone or email, we will respond you within 12 hours.
Q: How to get the detailed information and price and drawing?
A: Send us inquiry below and press "send " with the detailed packing request information as below:
1) product name 2) packing weight 3) product bulk density 4) product material and bag picture 5) packing speed and packing accurate request
