Product Details:
|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Air Pressure: | 0.5-0.8 MPa |
|---|---|---|---|
| Machine Sizes(L*W*H): | 2800*3700*5000mm | Chain Conveyor Max Loading: | 2.5 Ton |
| Related Voltage: | AC220V±10% AC380V±10% | Relative Humidity: | ＜85% |
| Cylinder Brand: | SMC Or Customized | User Manual: | English Version |
| Material Feeding: | Belt / Vibration / Auger | ||
| Highlight: | 2000kg Jumbo Bag Packing Machine,2000kg big bag packing machine,2000kg bag packing equipment |
||
Stainless Steel Large Sack Packing Machine , Chain Conveyor Optional , 400-2000 Kg
Machine Technicals
| Quantitative range (kg/bag) | 400~1500 kg | |
| Control accuracy (%) | Better than 0.2 | |
| Packaging speed (tons/hour) | 10-30 | |
| Type of packaging bag | PP centralized packaging woven bag | |
| Air supply source | Pressure (MPa) | 0.5±0.1 |
| Air consumption (m3/min) | 0.1 | |
| Power supply | Power supply | 380V, 50Hz |
| Power (kW) | 5.0 | |
| Working environment | Relative humidity | <95% |
| Ambient temp. | -15℃~45℃ | |
| Material | The part in contact with the material is 316L stainless steel, the rest is 304 stainless steel. | |
Machine Components List
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Introduction
SXP1000 automatic quantitative packaging machine is designed for centralized ton-bag packaging of powdery and granular materials with relative good flowability, it adopts rotary valve feeding, gross weight metering, can realize such functions as manual bagging, hanging tape suspension, automatic bag clamping, automatic material feeding, automatic weighing, automatic bag release, heavy bag conveying, etc. It features compact structure, simple and convenient operation, convenient handling, and high reliability.
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

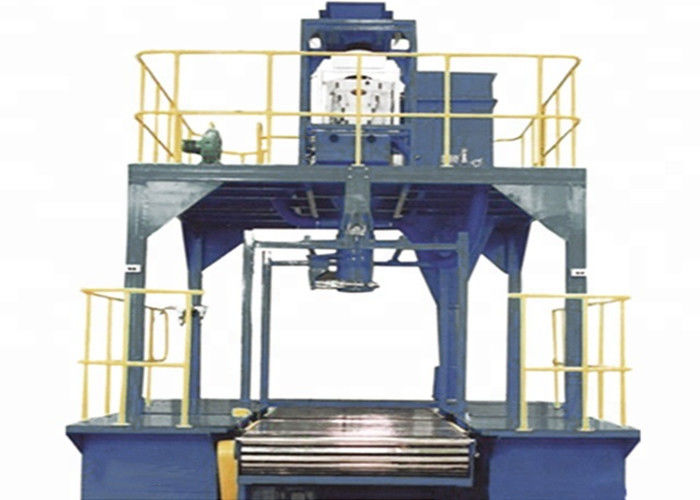

Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Flowing chart
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Machine Installation
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: what’s policy for guarantee and broken parts?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Q: What’s your terms of payment?
A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.
Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
