Product Details:
|
| Material Feeding: | Belt / Vibration / Auger | Chain Plate Material: | Galvanized Sheet |
|---|---|---|---|
| Gas Consumption: | 4.0Nm³/min~8.0Nm³/min | Relative Humidity: | ＜85% |
| Air Pressure: | 0.5-0.8 MPa | Working Time: | 24 Hours / Day |
| Related Voltage: | AC220V±10% AC380V±10% | Frequency: | 50±10 Hz |
| PLC: | Siemens | Machine Sizes(L*W*H): | 2800*3700*5000mm |
| Accuracy: | ±0.2-0.5% | ||
| Highlight: | 400kg Big Bag Packing Machine,400kg Jumbo Bag Packing Machine,400kg bag packing equipment |
||

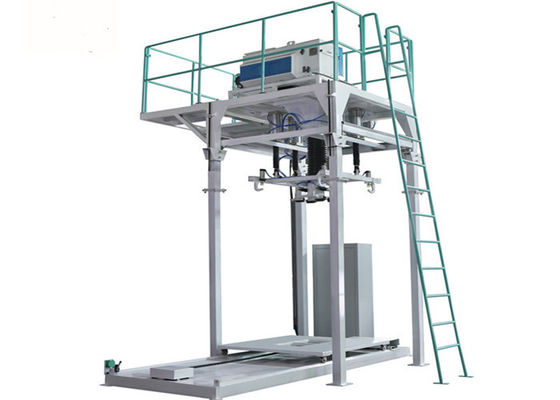

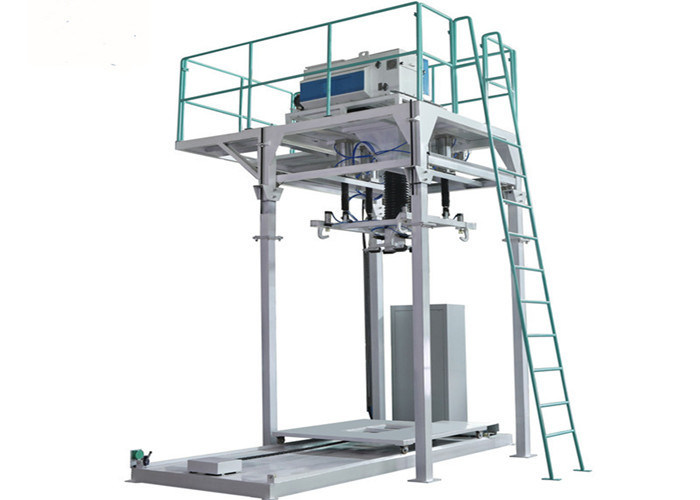

High Precision 400kg Big Bag Packing Machine , Vibration Feeding
Introduction
This type packing machine can be used for any type of jumbo bags, such as 300kg, 500kg, 1tons, 1.5tons and 2tons etc.
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
Machine Technicals
| Packaging Materials | Particle / Powder Materials |
| Packaging Model | 0.4-1.5 Ton |
| Packaging Accuracy | ±0.2-0.5% |
| Qualification | ≥99% |
| Packaging Speed | 10-30 Bag/H |
| Weighing Type | Hanging Weighting, automatic constant speed bag dropping |
| Packaging Bag Type | Foursquare bag hanging, artificial tying |
| Power | Power 380V AC 50HZ |
| Air Source Pressure | 0.6-0.8MPa |
| Noisy | ≤85db |
| Materials of Machine | SS used for area in direct touch with materials, and rest carbon steel spray treatment |
| Utility Factor | Over 80% (rest for regular maintenance, breakdown maintenance) |
Working Environment Temp& Moisture | -10～40℃；Moisture≦50% |
Machine Components
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Features
1, Feeding part: Adopt two kinds (big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
2, weighing shelf: The weighing shelf connected with sensor, and convey the Weight signal to the electric box which controlling the operation of the machinery.
3, The electro motion car operated by the motor and run in the track to convey the products. The cars' position controlled by worker and the final position is determined by the limit switch.
4, Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the feeding ON and OFF, cylinder lifting and the car running through inished program.
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.

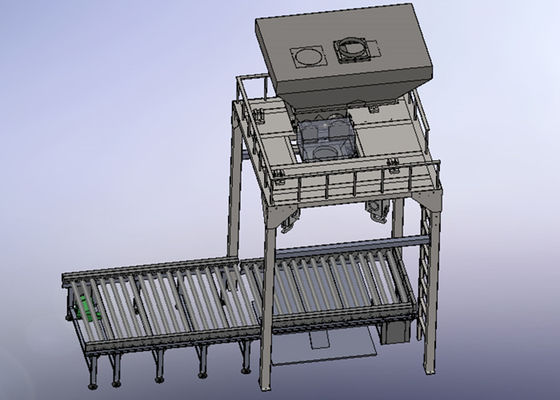

Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
