Product Details:
|
| Material Feeding: | Belt / Vibration / Auger | Working Time: | 24 Hours / Day |
|---|---|---|---|
| Related Voltage: | AC220V±10% AC380V±10% | Frequency: | 50±10 Hz |
| Accuracy: | ±0.2-0.5% | PLC: | Siemens |
| Machine Sizes(L*W*H): | 2800*3700*5000mm | Relative Humidity: | ＜85% |
| Air Pressure: | 0.5-0.8 MPa | Gas Consumption: | 4.0Nm³/min~8.0Nm³/min |
| Chain Plate Material: | Galvanized Sheet | ||
| Highlight: | 500kg Automatic Weighing And Packaging Machine,500kg industrial packaging equipment,500kg jumbo bag filling machine |
||

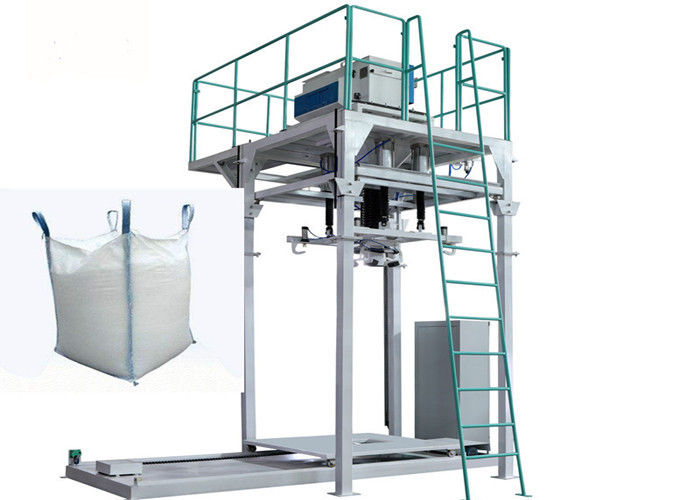

High Accuracy 500kg Big Bag Packing Machine , Vibration Feeding
Introduction
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Machine Components
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
The bagging machine can stable working more than 10 years.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Machine Main Parts
1. Electric rotary valve
2. Main weighing bracket
3. Access platform
4. Loadcell
5. Automatic release mechanism
6. Automatic bag clamping mechanism
7. Transition bin
8. Elevating cylinder
9. Ladder and guardrail
10. Pallet
11. Chain conveyor
12. Solenoid valve control cabinet
13. Explosion-proof control cabinet
Features
1, Feeding part: Adopt two kinds (big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
2, weighing shelf: The weighing shelf connected with sensor, and convey the Weight signal to the electric box which controlling the operation of the machinery.
3, The electro motion car operated by the motor and run in the track to convey the products. The cars' position controlled by worker and the final position is determined by the limit switch.
4, Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the feeding ON and OFF, cylinder lifting and the car running through inished program.
System composition and working mode

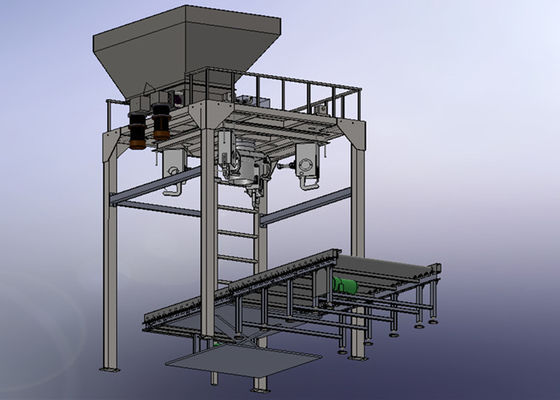

1. The system consists of feeding device, weighing platform, bracket, bag hanging and release/bag clamping device, control system, chain scrapper conveyor, etc., see the attached drawing for the detailed structure.
1) Feeding device
It adopts large-flow rotary valve structure and filling by dead weight of the material to realize fast and slow speed blade rotation feeding, which significantly increases the feeding speed, shortens feeding time, the slow feeding is easy to control and can be adjusted independently so as to ensure the system increases packaging speed while the accuracy is guaranteed.
2) Weighing platform
The weighing platform adopts the shock-proof weighing module with high accuracy and good stability, has the functions of overload, position limiting, etc. and has good mechanical reset performance.
3) Bag hanging and release/bag clamping device
It has the functions of manual hanging tape suspension during bag feeding, pneumatic bag mouth clamping, automatic bag mouth release when the heavy bag drops, automatic disengagement of hanging tape from the hook.
4) Bracket
The bracket has sufficient strength and rigidness, it is used for fixing the bag clamping device, bag hanging mechanism, etc. of the entire packaging scale.
5) Conveyor
The track car transports the heavy bag away from the packaging working position in order to facilitate transfer.
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
Our Service
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Our Advantages
SPECIALIST
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: open mouth bags, big bags etc.
EXPERIENCE
We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity.
PROFESSIONAL SERVICE TEAM
We have a professional team to provide you with 24-hour online service. And our efficient after sales service is present worldwide.
