Product Details:
|
| Material Feeding: | Belt / Vibration / Auger | Working Time: | 24 Hours / Day |
|---|---|---|---|
| Related Voltage: | AC220V±10% AC380V±10% | Frequency: | 50±10 Hz |
| Accuracy: | ±0.2-0.5% | PLC: | Siemens |
| Machine Sizes(L*W*H): | 2800*3700*5000mm | Relative Humidity: | ＜85% |
| Highlight: | 600Kg Jumbo Bag Packing Machine,600Kg big Bag Packing Machine,600Kg bag packing equipment |
||

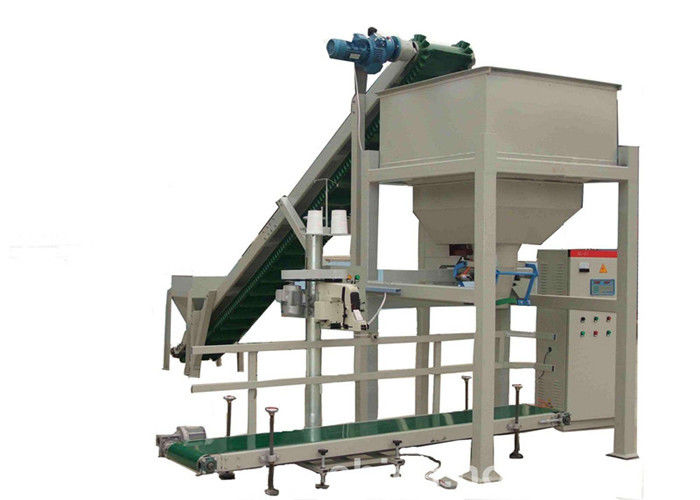

Bag Self-Defoliation Jumbo Bag Packing Machine In Feed Industry , Auger Filler , 600 Kg Sack
Technical Parameters
| Product name | bulk bag packing machine/jumbo bag packaging machine/FIBC bag packer | ||
| Model | SXP1000D/2T | SXP1000F/2T | SXP1000L/2T |
| Applicable | flake materials, granule and powder mixture, irregularly shaped materials and bad fluidity materials | powdery materials or fine granule materials with good fluidity | granular materials |
| Weighing range | 400kg to 2000kg per jumbo bag | ||
| Feeding mechanism | Belt feeder | screw feeder | gravity feeder |
| Precision | ≤±0.2-0.5% | ||
| Packing speed | 15-30bags/hour | 15-30bags/hour | 15-30bags/hour |
| Voltage | Single phase AC220V, three phase 380V, 50Hz, or customize | ||
| Power | 1.5kw | 3 kw | 1.5 kw |
| Dimension | 2800*3700*5000mm | ||
| Working environment | -10℃-40℃ | ||
Machine Components
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
The bagging machine can stable working more than 10 years.
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Features
1, Feeding part: Adopt two kinds (big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
2, weighing shelf: The weighing shelf connected with sensor, and convey the Weight signal to the electric box which controlling the operation of the machinery.
3, The electro motion car operated by the motor and run in the track to convey the products. The cars' position controlled by worker and the final position is determined by the limit switch.
4, Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the feeding ON and OFF, cylinder lifting and the car running through inished program.
System composition and working mode

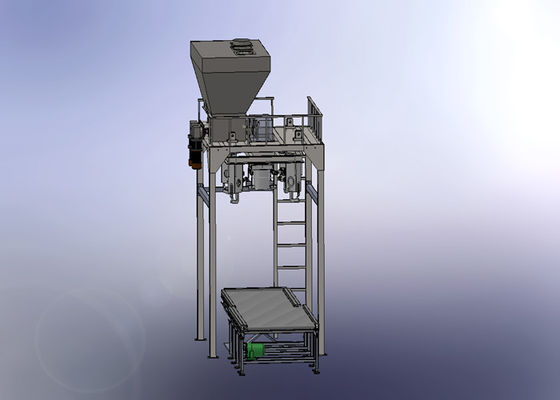

1. The system consists of feeding device, weighing platform, bracket, bag hanging and release/bag clamping device, control system, chain scrapper conveyor, etc., see the attached drawing for the detailed structure.
1) Feeding device
It adopts large-flow rotary valve structure and filling by dead weight of the material to realize fast and slow speed blade rotation feeding, which significantly increases the feeding speed, shortens feeding time, the slow feeding is easy to control and can be adjusted independently so as to ensure the system increases packaging speed while the accuracy is guaranteed.
2) Weighing platform
The weighing platform adopts the shock-proof weighing module with high accuracy and good stability, has the functions of overload, position limiting, etc. and has good mechanical reset performance.
3) Bag hanging and release/bag clamping device
It has the functions of manual hanging tape suspension during bag feeding, pneumatic bag mouth clamping, automatic bag mouth release when the heavy bag drops, automatic disengagement of hanging tape from the hook.
4) Control system
The control system is mainly composed of weighing controller, PLC, drive unit, cabinet body, etc.
It adopts Siemens PLC, imported photoelectric switches and position detection components to constitute the main body of the control system in order to realize coordinated control of the whole packaging machine, it has remote communication interface, which is connected with DCS through configuration in order to realize remote monitoring of the system. The operation of the whole operating system is simple, and its functions are complete, therefore, its overhaul and maintenance are convenient.

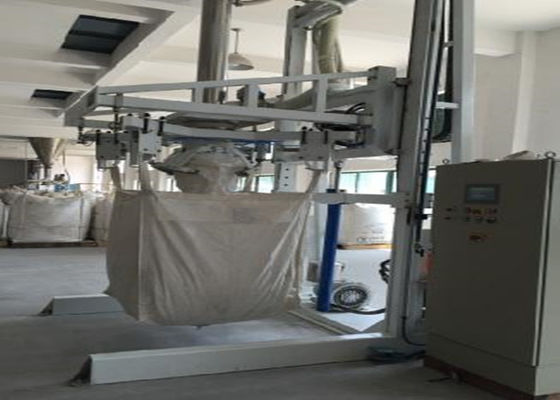

Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Our Advantages
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
Our Service
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
