Product Details:
|
| Machine Sizes(L*W*H): | 2800*3700*5000mm | Relative Humidity: | ＜85% |
|---|---|---|---|
| Related Voltage: | AC220V±10% AC380V±10% | Frequency: | 50±10 Hz |
| Accuracy: | ±0.2-0.5% | Material Feeding: | Belt / Vibration / Auger |
| Working Time: | 24 Hours / Day | PLC: | Siemens |
| Highlight: | 600Kg Sack Packing Machine,600Kg grain packaging machine,600Kg food grains packing machine |
||

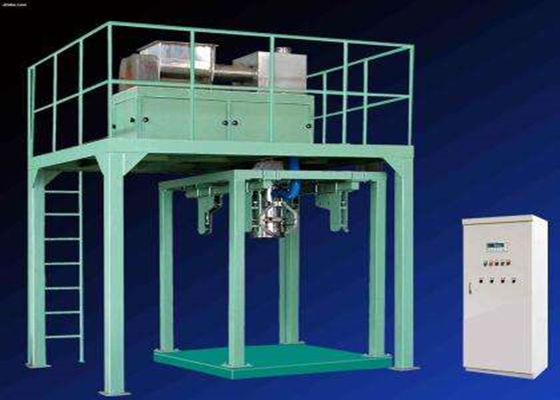

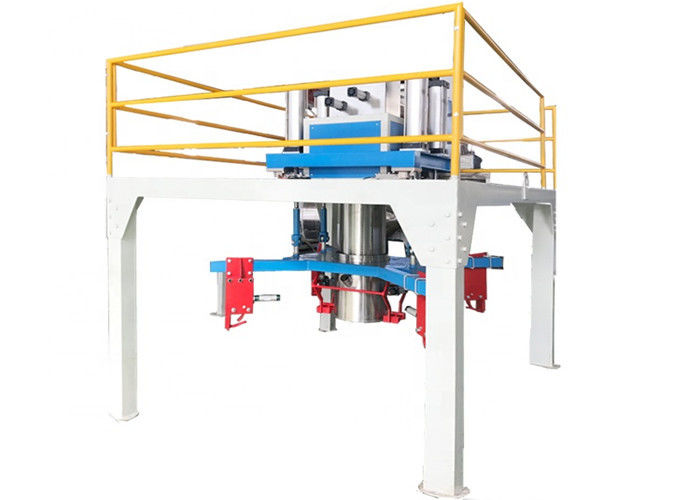

Pneumatic Lift Jumbo Bag Packing Machine In Grain Industry , 600 Kg Sack
Technical Parameters
| Model | SXP1000 |
| Weighing Scope | 0.5-2T/bag |
| Packing Capacity | 10-40 bags/hour |
| Accuracy | ±0.2%F.S |
| Air consumption | 0.6 m³/min |
Machine Parts
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI (color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs Mettler Toledo load cells as you need.
The bagging machine can stable working more than 10 years.
Features
1, Feeding part: Adopt two kinds (big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
2, weighing shelf: The weighing shelf connected with sensor, and convey the Weight signal to the electric box which controlling the operation of the machinery.
3, The electro motion car operated by the motor and run in the track to convey the products. The cars' position controlled by worker and the final position is determined by the limit switch.
4, Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the feeding ON and OFF, cylinder lifting and the car running through inished program.
Details
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Composition section of operating panel
The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.
Our Service
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
Why Choose Us
- EAGLE Packing Automatic Establish in 2007 with Rich Experience for over 15 years
- We Have Professional Technical Developing Team & After-Service Engineering Team
- Our Products Have Reached About 30 Countries
- We Focus on Big Bag Packing & Welcome Customer Coming for Checking Machine Directly
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
