Product Details:
|
| Machine Sizes(L*W*H): | 2800*3700*5000mm | Package Type: | Jumbo/big Bag |
|---|---|---|---|
| Weighing Range: | 400-2000kg | Relative Humidity: | ＜85% |
| PLC: | Siemens | Accuracy: | ±0.2-0.5% |
| Material Feeding: | Belt / Vibration / Auger | Voltage: | 220V/380V/50HZ Or Customized |
| Highlight: | 700Kg Jumbo Bag Packing Machine,700Kg big Bag Packing Machine,700Kg sack packing machine |
||

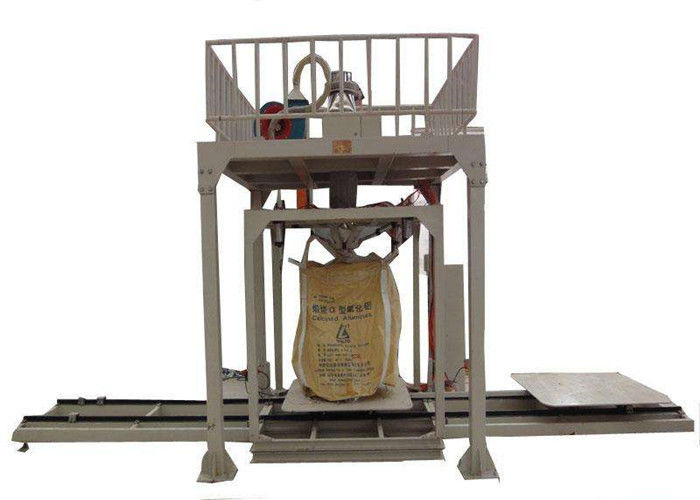

Food Industry Waterproof Jumbo Bag Packing Machine , 700 Kg Package
Technical Parameters
| Model | SXP1000 |
| Weighing Scope | 0.5-2T/bag |
| Packing Capacity | 10-40 bags/hour |
| Accuracy | ±0.2%F.S |
| Air consumption | 0.6 m³/min |
Features
The weighing system of SXP1000 quantification Ton packaging machinery contains high accuracy (0.02%) sensor and high-resolution controller, to keep the machine with high accuracy and stable performance.
The material feeding parts adopt two kinds big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
The packing range is 500-1200 kg adjustable. It suitable to big bags packing.
The parameter setting and the weighing calibration is very simple and with convenient operation.
Details

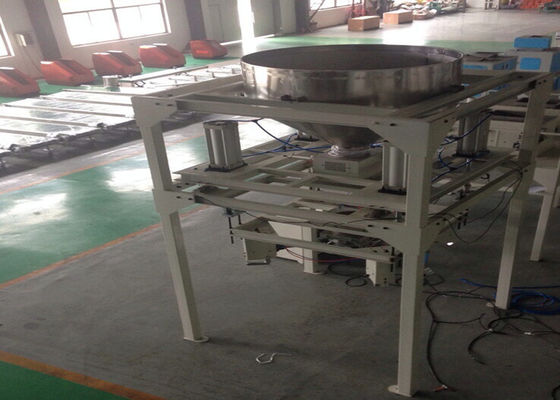

The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Composition section of operating panel
The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.
Our Service
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
