Product Details:
|
| Bag Shaping Frequency: | Once | Full Bag Conveying: | Chain Conveyor / Lift Platform |
|---|---|---|---|
| Temperature: | -10℃ ~ 40 ℃ | Machine Material: | Material Contact Parts Use 304SS, Other Parts Use Carbon Steel |
| After-sale Service: | Provided | Weighing Method: | Gross Weighing |
| Bag Clip Type: | Cylinder Clip | Voltage: | 220V/380V |
| Highlight: | 800Kg Industrial Packaging Machines,800Kg Jumbo Bag Packing Machine,800Kg big Bag Packing Machine |
||

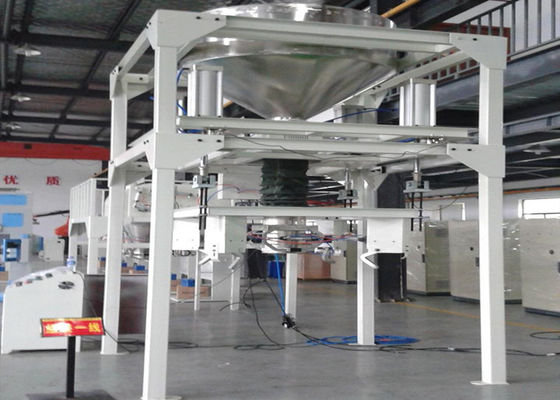

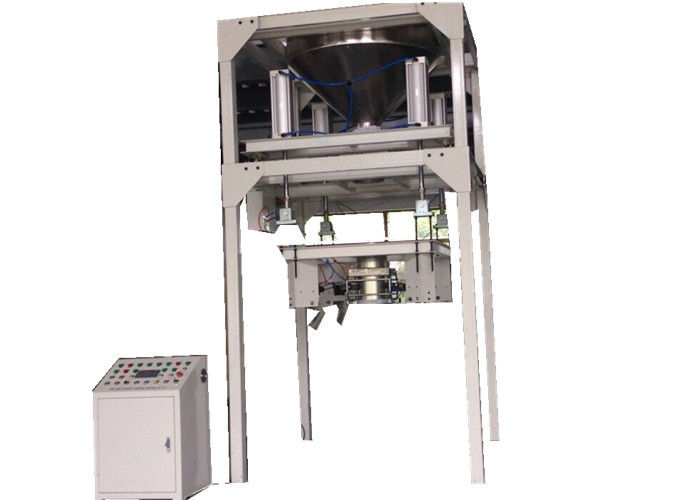

Carbon Materials Industry Dust-Proof Jumbo Bag Packing Machine , 800 Kg Sack
Introduction
Jumbo Bag Bagging Machine System is specially designed for Jumbo Bag / Ton Bag packaging. This machine unit shall realize the packaging from 500kg to 1000kg or over depending on material bulk density. Presently this machine unit is widely apllied in the packing area of chemical products / fertilizer products / feed mill products / food products etc.
Application Range
Widely applied to ores, chemical construction material, grain, feed stuff etc. and used for different industries.
Flowing Processes
Bag supplied & clamped by manual→ Automatic filling→ Automatic weighing→ Automatic bag conveyer
The jumbo bag packing machine working process is: Manual giving the jumbo bag to the packing machine bag clamper then touch the proximity switch then will automatic bag clamped the bag and locked the 4pcs loop-automatic feeding the materials-automatic weighing-automatic discharge the materials into the jumbo bags-well finished jumbo bag will conveyor out from the packing machine by the big heavy conveyor-move by the forklift.
The materials by the wheel loader dump to the feeding hopper then by the bucket elevator conveying to the jumbo bag packing machine for feeding, weighing, packing and discharge into 300kg-2000kg jumbo bags, the finished filling jumbo bag will conveying out from the packing machine by the heavy duty conveyor, then move by your forklift.
Technical Parameters
| Product name | bulk bag packing machine/jumbo bag packaging machine/FIBC bag packer | ||
| Model | SXP1000D/2T | SXP1000F/2T | SXP1000L/2T |
| Applicable | flake materials, granule and powder mixture, irregularly shaped materials and bad fluidity materials | powdery materials or fine granule materials with good fluidity | granular materials |
| Weighing range | 400kg to 2000kg per jumbo bag | ||
| Feeding mechanism | Belt feeder | screw feeder | gravity feeder |
| Precision | ≤±0.2-0.5% | ||
| Packing speed | 15-30bags/hour | 15-30bags/hour | 15-30bags/hour |
| Voltage | Single phase AC220V, three phase 380V, 50Hz, or customize | ||
| Power | 1.5kw | 3 kw | 1.5 kw |
| Dimension | 2800*3700*5000mm | ||
| Working environment | -10℃-40℃ | ||
Features
Tailored to characteristics of powder material, granule material and different requirements of factory.
The machine adopts different classifying and feeding types (direct flow, conveyor, vibration and belt) according to different material. It has features of stable performance, high packaging precision, and high-speed packaging.
High stability during control process with programmable electric control system.
Advanced dust collecting design reduces greatly dust pollution upon working circumstance. Electric platform scale like weighing system adopts Board-characteristic adjusting, and working parameter setting, has advantages of accumulated weight display, automatic peeling, automatic falling correction, high sensitivity, and strong anti-interference capacity.
Meters equipped with communication ports, available for computer connecting and networking, capable of real time monitoring and network management.
Machine Components List
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
The materials by the wheel loader dump to the feeding hopper then by the bucket elevator conveying to the jumbo bag packing machine for feeding, weighing, packing and discharge into 300kg-2000kg jumbo bags, the finished filling jumbo bag will conveying out from the packing machine by the heavy duty conveyor, then move by your forklift.
Functions of instrument
a. Power failure protection and automatic data saving without loss upon power failure
b. Automatic zero adjustment, zero clear enable, cyclic zero clear.
c. Automatic error correction, over-tolerance alarm, underweight alarm, zero position over-tolerance alarm.
d. Automatic weight compensation, the weight is compensated to the correct set value after automatic correction of weight error.
Packaging and Shipping
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship by sea from port Shanghai.
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
After-sale Service
We aim to best serve our clients’ needs. So, we promise the following clauses on condition of establishing business relationship with you
1) The seller will supply the buyer the guide service on the operation of the machine
2) The seller will respond within 2 hours if the machine goes wrong in production
3) If required, the seller will dispatch technician to buyer’s country for installation guide, commissioning & adjusting the machine and training the workers on condition that the buyer affords all the cost from China to the buyer’s company including food, accommodation, transportation, etc. and extra USD100 per day per person for the service
