Product Details:
|
| Voltage: | 280V / 380V | Weighing Accuracy: | ±0.2-0.5% |
|---|---|---|---|
| Machine Type: | Vertical | Sealing Type: | Heat Sealed / Stitched / Folding Sewing |
| Packing Speed: | 200-300 Bags / Hour | Controller: | PLC And Touch Screen |
| Material Feeder: | Screw Filling | Weighing: | Sensor |
| User Manual: | English Version | Certificate: | CE, Certificate Of Origin |
| Highlight: | 20Kg Bag Salt Packing Machine,280V sugar sachet packing machine,20Kg bag salt packaging machine |
||

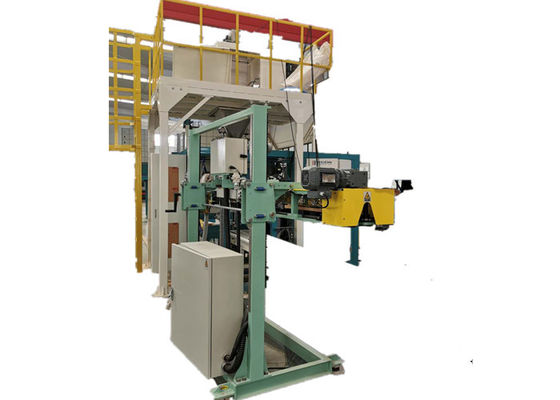

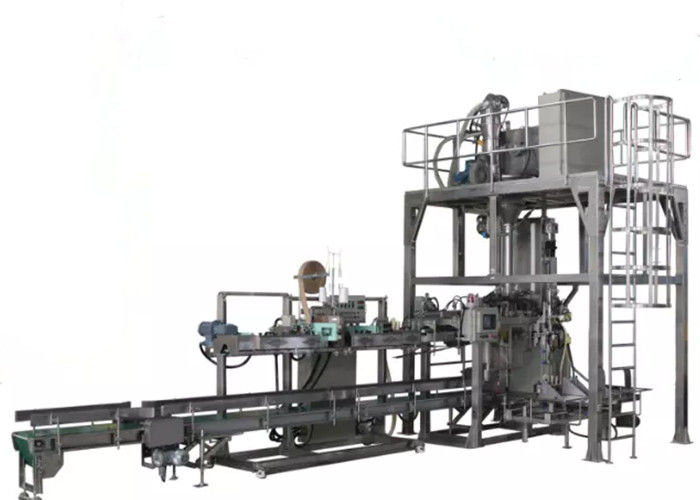

Sugar Salt Packaging Machine In Additive Industry For Bulk Packed Material 10-50 Kg Bag
General Description
- SXPA50 Series Packing Machine Unit Is Specially Designed For Pre-Made Big Sack Auto Bag Feeding And Packing At High Speed So As To Improve Customer’s Production Efficiency;
- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;
- This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
- Heavy bag granule automatic high-speed packaging machine is a new type of packaging machine, which is developed for the packaging of large bag granule materials in chemical, feed, grain, seed and other industries. It has functions of automatic weighing, automatic bagging, automatic filling, automatic package delivery and automatic sealing. It can work with various granular and sheet materials and equipment to realize the production of large-scale packaging and heavy-bag packaging.
Scope of application
Particles, sheet materials (such as polyethylene, polypropylene, polyvinyl chloride, PVC, PVA, etc.). In the process of production, it realizes the full automation of bag supply, bag taking, bag opening, bag bagging, metering, filling, bag unloading, clamping shaping, folding and sealing, etc.
Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode |
Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing
|
|
Packaging Unit
a. Hopper:0.3m³ Cone Type hopper, equipped with function of material level alarm
b. Measuring Scale: High accurate packaging, three-sensor location weighing structure, packaging speed over 700bags/h
c. Bag storage: 200-400 empty bags storage.
d. Bag Holding Type: mechanical arm fetching
e. Bag Sealing Type: fully automatic bag thread stitching or heat sealing or other sealing type customer required.
f. Repair Platform: Lade stand, anti-slip platform and safety railing
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Machine main components list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Our Service
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sale Service
- We Shall Arrange Engineers to Be at Present After Machine Arrived at Customer's Factory;
- Teaching Lessons Shall Be Arranged During Installation Periods.
- The Engineer Shall Head Back to China Until Machine Running Stable At Present.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Description of functional modules
Functional modules include
1.Storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.
2. 25-50KG double-head weighing machine: quantitative metering and supply.
3. Working platform: used for equipment inspection and maintenance.
4. Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;
Main Features
1. The machine unit line adopts famous brand electrical parts like Mettler Toledo load cell / Banner Vacuum Generator / SMC Valve / Siemens PLC & Touch Screen etc. To ensure good machine performance for customer;
2.The main packing machine shall be equipped with safe door and the robot hand shall be equipped with safety guard to ensure the worker’s safety;
3. The whole machine line shall build up a controlling cabinet for the connecting of all the machine lines;
4. The whole machine line just require one to two person for operating & normal checking which greatly save the labor cost for the customer and increase the production efficiency
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Precautions for use
Notice: please do not change any part on the machine;
Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;
Notice: please keep the equipment clean inside and outside and avoid moisture;
Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;
