Product Details:
|
| Weighing Accuracy: | ±0.2-0.5% | Material: | Can Be Made All 304SS |
|---|---|---|---|
| Packing Speed: | 480-600 Bags/ Hour | Voltage: | 280V / 380V |
| Material Feeder: | Screw Filler / Gravity Filling | Controller: | PLC And Touch Screen |
| Package Material: | Plastic , Paper, Film Compound Etc. | Weighing: | Sensor |
| Highlight: | 20kg food grains packing machine,20kg wheat packaging machine,304SS food grains packing machine |
||
Multigrain Packaging Machine In Food Industry For Premade PE Bag 20 Kg Corn Wheat
General Description
- SXPA50 Series Packing Machine Unit Is Specially Designed For Pre-Made Big Sack Auto Bag Feeding And Packing At High Speed So As To Improve Customer’s Production Efficiency;
- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;
- Equipping With Different Kinds of Weighing System, the Machine Unit Can Pack Powder Material As Well As Granular Material
Application
Applicable to many industries, including the chemical industry, cereal, food, pharmacy, fertilizer, seed, feed, and additives, etc., and mainly targeted at the full-automatic high-speed measurement and packaging of granular, loose and flake-like materials
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 220V 380V 50Hz 60Hz14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Description of functional modules

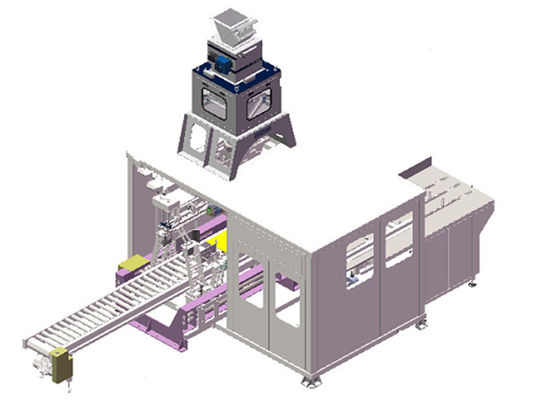

Functional modules include (Fig. 1):
1. Storage silo: used for short-time storage of material in order to ensure interrupted supply of material to the packaging machine.
2. 25-50KG double-head weighing machine: quantitative metering and supply.
3. Working platform: used for equipment inspection and maintenance.
4. Fast bag feed automatic packaging machine: completes automatic packaging process, including: automatic bag feed, bag clamp and opening, filling, metering, bag mouth unscrambling, bag holding and conveying;
5. Seam sealing machine: stitching, rubber covering and adhesion of packaging bag mouth.
6. Finished product conveyor: automatically outputs already packaged finished bags.
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Our Service
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sale Service
- We Shall Arrange Engineers to Be at Present After Machine Arrived at Customer's Factory;
- Teaching Lessons Shall Be Arranged During Installation Periods.
- The Engineer Shall Head Back to China Until Machine Running Stable At Present.
Packaging and Delivery
* Our wooden case is very strong; it can bear long time shipping on the sea.
* Machine packing inside is plastic films and outside is fumigation wooden case.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Documents:
Operational manual with English will be given at the time of dispatch of machine. We will also provide the electrical diagram in English and all the certification like CE, Certificate of Origin (Form A, Form E etc.) for your custom clearance and machine installation.
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
FAQ
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
