Product Details:
|
| Voltage: | 280V / 380V | Material: | Can Be Made All 304SS |
|---|---|---|---|
| Packing Speed: | 480-600 Bags/ Hour | Material Feeder: | Screw Filler / Gravity Filling |
| Weighing Accuracy: | ±0.2-0.5% | Weighing Range: | 10-50kg |
| Package Material: | Plastic , Paper, Film Compound Etc. | Usage: | Filling Weighing Sealing Conveying |
| Highlight: | 30kg Wood Pellet Packing Machine,30kg granular packing machine,304SS Wood Pellet Packing Machine |
||

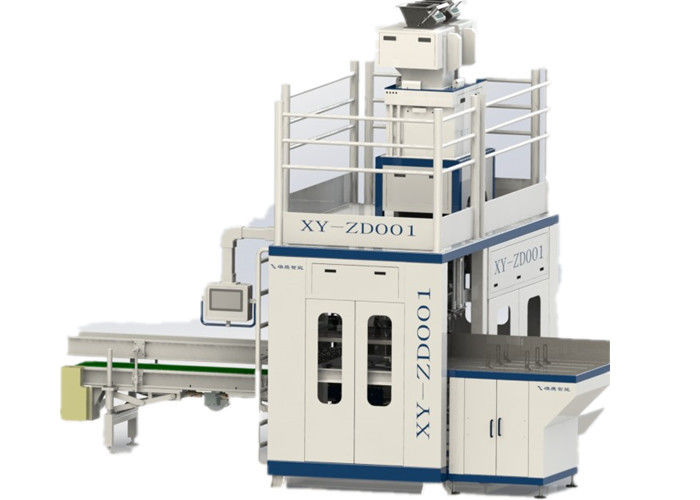

Granular Packaging Weighing Equipment In Mineral Industry For Biomass Wood 30 Kg Bag
Application
Our new packaging machine unit designed for large bag of granule materials in chemicals, fertilizers, feeds, seeds, food and other industries has functions of automatic weighing, bag, filling, package sending and sealing etc., which can complete connection with equipment like back stacking robot etc. to realize large-scale package and unmanned operation of the stacking.
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Machine Characteristics
1, Small in machine size, occupy less installation space;
2, Machine parts contact product use Stainless Steel for anti-corruption, also can make machine with whole Stainless Steel which can meets different client requirements and easy for maintenance;
3, Adopting PLC Control & Touch Screen Operating, easy to learn and operate;
4, Using imported famous brand electrical spare parts, ensuring stable working performance;
5, Multi-lanuage in-put, meeting the needs of customers from different parts of the world
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Packaging and Delivery
* Our wooden case is very strong; it can bear long time shipping on the sea.
* Machine packing inside is plastic films and outside is fumigation wooden case.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Documents:
Operational manual with English will be given at the time of dispatch of machine. We will also provide the electrical diagram in English and all the certification like CE, Certificate of Origin (Form A, Form E etc.) for your custom clearance and machine installation.
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
FAQ
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) | Speed (bags/minute) | Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) | Empty bag: L * W Full bag: L * W * H | ||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
