Product Details:
|
| Voltage: | 280V / 380V | Weighing Accuracy: | ±0.2-0.5% |
|---|---|---|---|
| Weighing Range: | 10-50kg | Usage: | Filling Weighing Sealing Conveying |
| Packing Speed: | 480-600 Bags/ Hour | Material Feeder: | Screw Filler / Gravity Filling |
| Package Material: | Plastic , Paper, Film Compound Etc. | Material: | Can Be Made All 304SS |
| Highlight: | 40Kg Automatic Weighing And Packing Machine,40Kg Corn Seed Packing Machine,40Kg bulk bag packing machine |
||

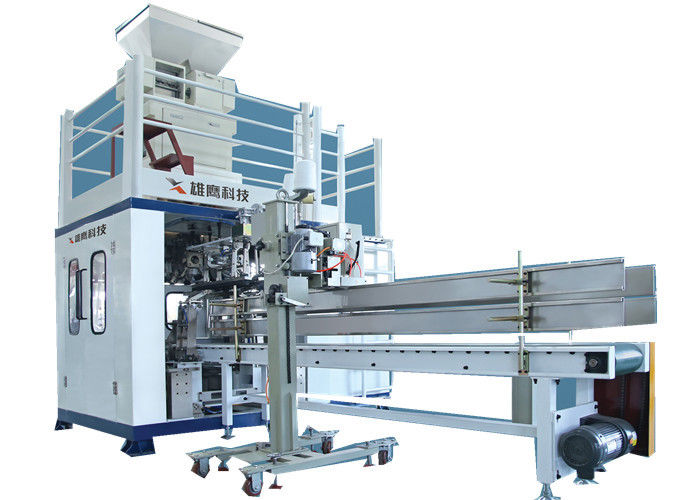

Corn Seed Industry Automatic Weighing And Packing Machine For Bulk Bag 40 Kg
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Introduction
This unit is a dedicated equipment for automation production mainly to realize automatic packaging (automatic bag pickup, bag feed, bag delivery, bag opening, filling and bag sealing) and output of finished product. This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
Machine Features
1. The whole line is customized according to customer’s specific needs and workroom present situation to make sure all the machine suit well for the customer;
2. The machine unit line adopts famous brand electrical parts like Mettler Toledo load cell / Banner Vacuum Generator / SMC Valve / Siemens PLC & Touch Screen etc. To ensure good machine performance for customer;
3.The main packing machine shall be equipped with safe door and the robot hand shall be equipped with safety guard to ensure the worker’s safety;
4. The whole machine line shall build up a controlling cabinet for the connecting of all the machine lines;
5. The whole machine line just require one to two person for operating & normal checking which greatly save the labor cost for the customer and increase the production efficiency
Precautions for use
Notice: use specified supply voltage, this machine adopts single-phase 3-wire (AC380V, 50Hz), it shall be avoided to roll press the power line and the power line shall be rolled with hands when it is not used;
Notice: please keep the equipment clean inside and outside and avoid moisture;
Notice: please do not change any part on the machine;
Notice: before formal startup, be sure to confirm that each switch parameter operates normally, otherwise, the equipment may be damaged;
Notice: before formal startup, if the specification needs to be changed, please perform operation in strict accordance with the specification change steps, otherwise, the equipment may be damaged;
Notice: please do not place moist and dirty articles on the equipment deck.
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell | Toledo (Sweden) |
Packaging and Delivery
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong; it can bear long time shipping on the sea.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Installation:
1-We provide videos and instruction manual to show the process of installation.
2-We provide training for installation for free in our factory.
3-We can send technician to buyer's factory to install the machine and provide training service
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
FAQ
Q: How do we test your machinery?
A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shipment.
