Product Details:
|
| Logo: | Customized | Weighing Range: | 10-50kg |
|---|---|---|---|
| Filling Method: | Screw Filler / Gravity Filler | Packing Speed: | 6-10 Bags / Minute |
| Voltage: | 380V | HS Code: | 8422400000 |
| Air Supply Source: | 0.6MPa, 0.5m3/min | Dimension(L*W*H): | 5700*2800*3500mm |
| Highlight: | 14KW automatic weighing and bagging machine,50kg Bulk Bag automatic weighing and bagging machine,14KW automatic weighing and packaging machine |
||

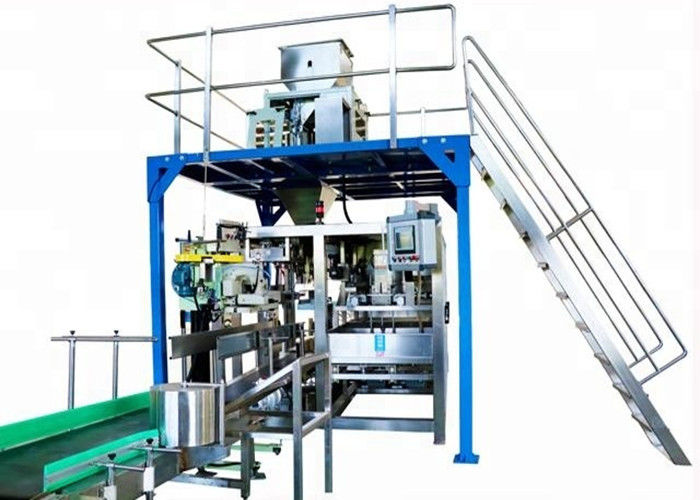

14 KW Automatic Weighing And Packing Machine In Animal Feed Industry for 50kg bulk bag
Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It has functions of automatic weighing, automatic bagging, automatic filling, automatic package delivery and automatic sealing. It can work with various granular and sheet materials and equipment to realize the production of large-scale packaging and heavy-bag packaging.
Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Bag Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
System equipment meets engineering condition &public use
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
Machine Main components
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag sending unit
e. Bag upper unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing station
j. Stand-up bag conveyor
k. Electrical control section
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Application Scope
Our new packaging machine unit designed for large bag of granule materials in chemicals, fertilizers, feeds, seeds, food and other industries has functions of automatic weighing, bag, filling, package sending and sealing etc., which can complete connection with equipment like back stacking robot etc. to realize large-scale package and unmanned operation of the palletizing.
Machine Features
1. The control parts use Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability.
2. The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder.
3. The vacuum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch.
4. On all actuating mechanism, there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Packaging and Delivery
1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
Our Promise
Custom-made machine:
We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system work smoothly.
Installation:
1-We provide videos and instruction manual to show the process of installation.
2-We provide training for installation for free in our factory.
3-We can send technician to buyer's factory to install the machine and provide training service
After-Sale Service
Fast Response
1. We will reply you in 1 work day to your problems.
Online Support
2. Provide online phone call support. Our engineer will call you to solve your problems.
3. Provide online video call support. Our engineer will send you a video call to guide you how to operate to solve the problems.
Spare Parts Support
1. Provide 1-year free spare parts change. Only if it is not broken by man-made.
