| Type: | Multi-Function Packaging Machine | Weighing Range: | 10-50kg |
|---|---|---|---|
| Function: | Filling Weighing Sealing Conveying | Packing Speed: | 6-10 Bags / Minute |
| Weighing Accuracy: | 0.2-0.5% | Control System: | PLC And Touch Screen |
| Measuring: | Load Cell | Bag Sealing: | Heat Sealed / Stitched / Folding Sewing |
| Highlight: | 50Kg Multi Function Packaging Machine,50Kg chemical packaging equipment,14kw 50 kg bag packing machine |
||

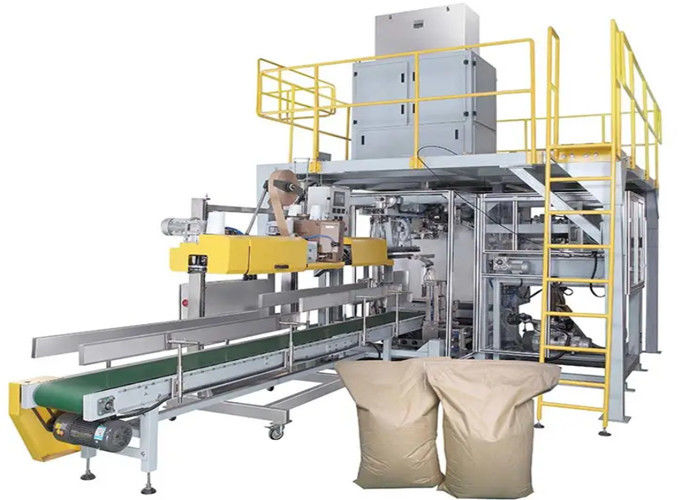

Automatic Weighing And Packing Machine In In Chemical Industry For Bulk Bag 50 Kg
Brief Introduction
Heavy bag granule automatic high-speed packaging machine is a new type of packaging machine, which is developed for the packaging of large bag granule materials in chemical, feed, grain, seed and other industries. It has functions of automatic weighing, automatic bagging, automatic filling, automatic package delivery and automatic sealing. It can work with various granular and sheet materials and equipment to realize the production of large-scale packaging and heavy-bag packaging.
Scope of application
Particles, sheet materials (such as polyethylene, polypropylene, polyvinyl chloride, PVC, PVA, etc.). In the process of production, it realizes the full automation of bag supply, bag taking, bag opening, bag bagging, metering, filling, bag unloading, clamping shaping, folding and sealing, etc.
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification |
10kg-50kg
|

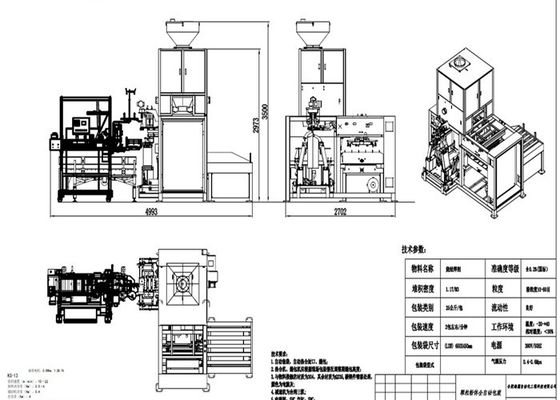

| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
1.1 Packaging Unit
a. Hopper:0.3m³ Cone Type hopper, equipped with function of material level alarm
b. Measuring Scale: High accurate packaging, three-sensor location weighing structure, packaging speed over 700bags/h
c. Bag storage: 200-400 empty bags storage.
d. Bag Holding Type: mechanical arm fetching
e. Bag Sealing Type: fully automatic bag thread stitching or heat sealing or other sealing type customer required.
f. Repair Platform: Lade stand, anti-slip platform and safety railing
1.2 System equipment meets engineering condition &public use.
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
1.3 Machine Main components
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag sending unit
e. Bag upper unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing station
j. Stand-up bag conveyor
k. Electrical control section
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Machine Features
1. The control parts use Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability.
2. The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder.
3. The vacuum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch.
4. On all actuating mechanism, there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
