Product Details:
|
| Max Loading: | 1-70kg | Material Feature: | Dust / Heat Resistant |
|---|---|---|---|
| Material: | Carbon Steel / 304 Stainless Steel | User Manual: | English Version Or Customized |
| Controller: | One Controller For Whole Conveyor System | Voltage: | 220-415V 3PH 0.75KW/1.5KW 50/60HZ |
| Roller Diameter: | 38mm, 50mm, 60mm, 76mm And 89mm | Motor: | CPG / SEW / Customized |
| Highlight: | 0.75 KW Curve Roller Conveyor,1.5 KW Curve Roller Conveyor,Adjustable Foot Curve Conveyor |
||

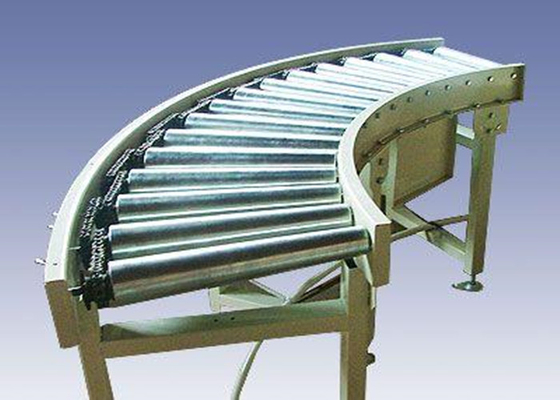

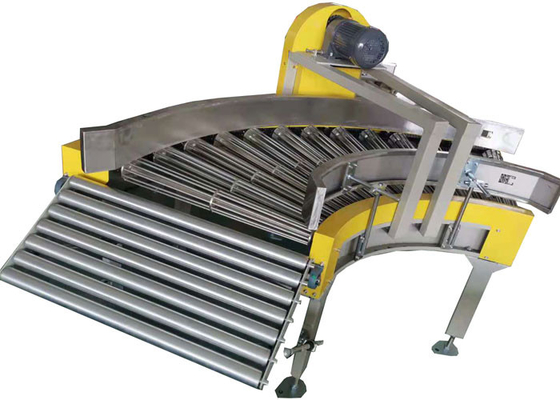

SEW Motor 0.75-1.5 KW Stainless Steel Curve Roller Conveyor With Adjustable Foot
Roller Conveyor Application
The rollers machine is applicable to transport the goods whose bottom is flat. Mainly applied to connect packing/bagging machine with palletizing robot system, including the belt conveyor, roller conveyor for bag, carton, drum, bottle and so on. Also contains empty pallet magazine system.
Features
Roller conveyor is composed of roller section, drive unit, chain, support etc. Under slung mounted motor drives above two rollers through chain, these two rollers will separately drive front and back rollers.
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Bearing block | LK | Cast iron |
| 3 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 4 | Beam | Sheet metal welding | Carbon steel spray |
| 5 | Curve roller | Eagle, caged rollers | Galvanized |
| 6 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
Conveyor Type - Curve Conveyor
| No. | Model | Name | Size |
| 1 | SX-WDA-2 | Curve conveyor A | Length 720mm, height 200mm |
| 2 | SX-WDB-2 | Curve conveyor B | Length 720mm, height 750mm |
The packaging bag is conveyed to curve conveyor and the bag conveying direction will be changed by the turning effect of the curve and realize various functions of the next stations. The use of caged rollers can effectively prevent the bags from slipping on the conveyor, achieve the function of caching bags by photoelectric detection and PLC program control.
Package and Shipping
All the products will be strictly quality checked in house before packing.
All the products will be well packed before shipping.
All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion
Our Service
Any inquiries will be replied within 24 hours.
Professional manufacturer. Welcome to visit our factory.
OEM available: Any of your idea will be took and we will help to design as best as we can and put it into production.
High quality, reasonable & competitive price, fast lead time.
WHY CHOOSE US
1. We have 20 years’ experience to packing lines
2. Strong ability of product sure to deliver the goods within a month
3. We have a stable technology team that more than 30 engineers in our factory
4. ISO9001 certified workshop and CE
5. The supporter of spare part all are famous company and have reliable quality
