SEW Motor 0.75 - 1.5 KW Curve Conveyor For Robot Carbon Steel / Stainless Steel

SEW Motor 0.75-1.5 KW Curve Conveyor For Robot Carbon Steel / Stainless Steel

Roller Conveyor Application

The rollers machine is applicable to transport the goods whose bottom is flat. Mainly applied to connect packing/bagging machine with palletizing robot system, including the belt conveyor, roller conveyor for bag, carton, drum, bottle and so on. Also contains empty pallet magazine system.

Technical Parameters



No.	Name	Brand/Model	Material
1	Motor	CPG	Aluminum (shell)
2	Bearing block	LK	Cast iron
3	Outrigger	Square tube 80x40	Carbon steel spray
4	Beam	Sheet metal welding	Carbon steel spray
5	Curve roller	Eagle, caged rollers	Galvanized
6	Guardrail	Bent plate, thickness 1.5mm	Stainless steel 201

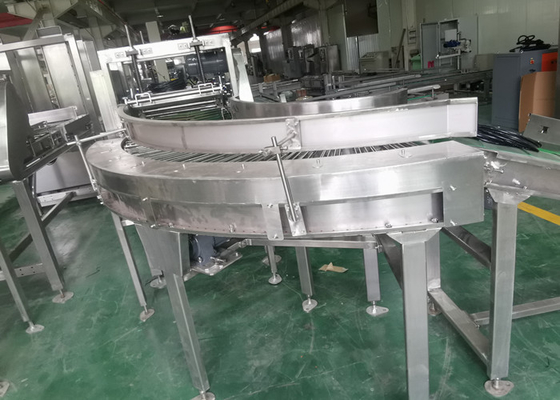

Conveyor Type - Curve Conveyor



No.	Model	Name	Size
1	SX-WDA-2	Curve conveyor A	Length 720mm, height 200mm
2	SX-WDB-2	Curve conveyor B	Length 720mm, height 750mm



The packaging bag is conveyed to curve conveyor and the bag conveying direction will be changed by the turning effect of the curve and realize various functions of the next stations. The use of caged rollers can effectively prevent the bags from slipping on the conveyor, achieve the function of caching bags by photoelectric detection and PLC program control.

Conveyor Features

Roller

Roller with high quality bearing can rotate smoothly, small resistance, low noise, long service life and galvanization treatment on roller surface.

Support

Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm.

Distance between supports is determined by working condition.

Speed

Normal speed can be 12, 16, 18m/min, maximum speed can be 20m/min.

Safety

There are guards for drive part of drive unit and roller sprocket. Put caution label on the places wherever injuries may take

place to remind and avoid accidents.

Package and Shipping

All the products will be strictly quality checked in house before packing.

All the products will be well packed before shipping.

All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion.

Our Service

Any inquiries will be replied within 24 hours.

Professional manufacturer. Welcome to visit our factory.

OEM available: Any of your idea will be took and we will help to design as best as we can and put it into production.

High quality, reasonable & competitive price, fast lead time.

WHY CHOOSE US

1. We have 20 years’ experience to packing lines

2. Strong ability of product sure to deliver the goods within a month

3. We have a stable technology team that more than 30 engineers in our factory

4. ISO9001 certified workshop and CE

5. The supporter of spare part all are famous company and have reliable quality
