Product Details:
|
| Name: | Pallet Roller Conveyor System | Load Capacity: | 20-150kg/m |
|---|---|---|---|
| Max Loading: | 100-200kg | Roller Diameter: | 38mm, 50mm, 60mm, 76mm And 89mm |
| Material Feature: | Heat Resistant | Structure: | Belt |
| Type: | Transportation System | Height: | 0.2m-2m/customized |
| Highlight: | 150kg/M Pallet Roller Conveyor System,100kg Pallet Roller Conveyor System,150kg/M automated pallet conveyor systems |
||

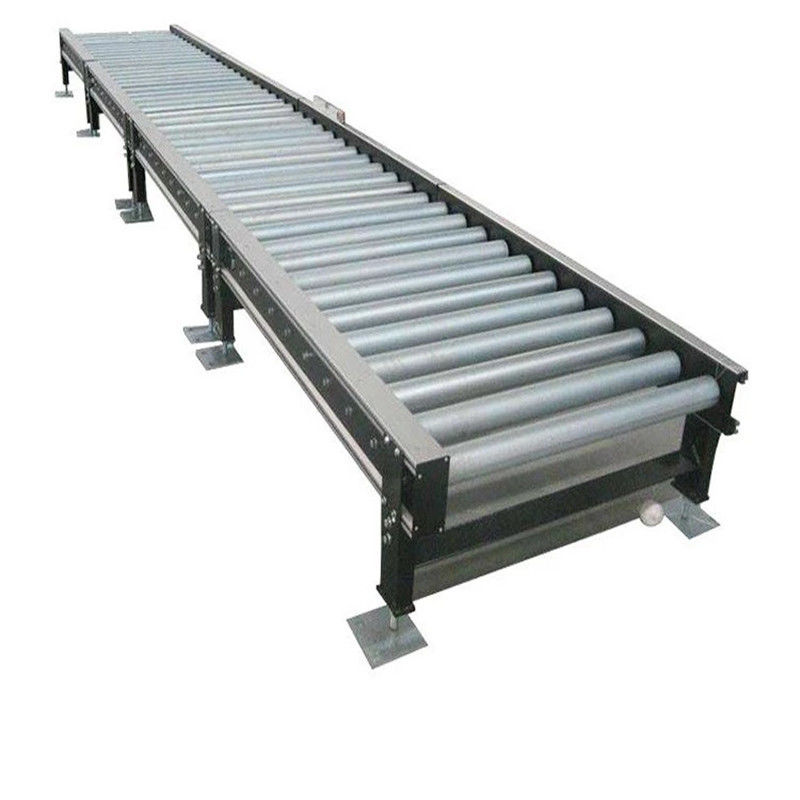

20-150kg/M Horizontal Pallet Roller Conveyor System Heavy Load
The Pallet Roller Conveyor System has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like.
| No. | Model | Name | Size |
| 1 | XYR-BCA | Horizontal conveyor A | Length 2000mm, belt width 550mm, height 200mm |
| 2 | XYR-BCB | Horizontal conveyor C | Length 5000mm, belt width550mm, height 750mm |
Pallet Roller Conveyor System Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Yongbo | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 5 | Beam | Bent plate, thickness 4mm | Carbon steel spray |
| 6 | Main roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ138 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
Application of Pallet Roller Conveyor System
We have different kinds of conveyor lines, such as belt conveyor for bags, roller conveyor for bottles/drum/cartons, elevating conveyor, shaping conveyor, bag flatten conveyor, heavy load conveyor, pallet conveyor, pallet magazine system etc.
Our service
Quick Response
We highly appreciate your enquiry by email,telephone,online methods..
We will reply your email or telephone within 24 hours.
Pls feel free to contact us at any time if there is any questions.
Technical support and quality control
We are a professional manufacturer of conveyor parts,conveyor system line, packing machine and palletizing robot system in the year 2007. There are 12 high-quality engineers and designers for great technical backup. Meanwhile, Quality Control Dept. make the test of part and machine to ensure the high quality.
WHY CHOOSE US
1.We have 20 years’ experience to packing lines
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
Package and Shipping
When Eagle packaging systems leave our docks it's our responsibility to ensure that they are installed successfully, meet your expectations, and can be supported for the long haul. On a daily basis we support machinery that has been in continuous use for more than 20 years. We want to do the same for you.
FAQ
Q:Are you a factory or a trade company?
A:We are the factory.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:What's your lead time ?
A:Normally 20-30 days after we receive your deposit.
