Product Details:
|
| Material Feature: | Heat / Dust Resistant | Structure: | Roller / Belt / Chain |
|---|---|---|---|
| Roller Material: | Galvanized | Max Loading: | 10-100kg |
| Roller Diameter: | 38mm, 50mm, 60mm, 76mm And 89mm | Voltage: | 220-415V 3PH 0.75KW/1.5KW 50/60HZ |
| Power: | 1.5KW / 0.75 KW | Material: | Carbon Steel / 304 SS |
| Highlight: | 0.75Kw Curve Palletizing Conveyor,Galvanized Palletizing Conveyor,304SS Palletizing Conveyor |
||

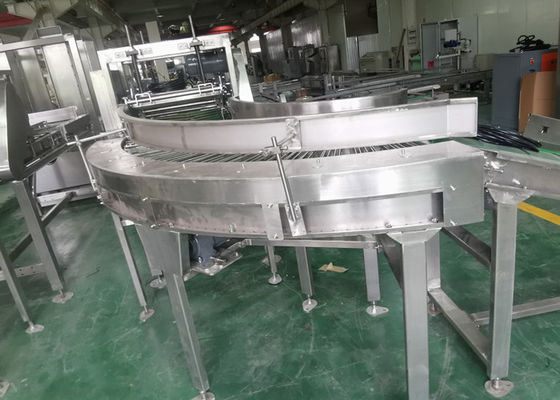

0.75 Kw Curve Palletizing Conveyor For Robot Stainless Steel In Packing Line
Roller Conveyor Application
The rollers machine is applicable to transport the goods whose bottom is flat. Mainly applied to connect packing/bagging machine with palletizing robot system, including the belt conveyor, roller conveyor for bag, carton, drum, bottle and so on. Also contains empty pallet magazine system.
Technical Parameters
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Bearing block | LK | Cast iron |
| 3 | Outrigger | Square tube 80x40 | Carbon steel spray |
| 4 | Beam | Sheet metal welding | Carbon steel spray |
| 5 | Curve roller | Eagle, caged rollers | Galvanized |
| 6 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |

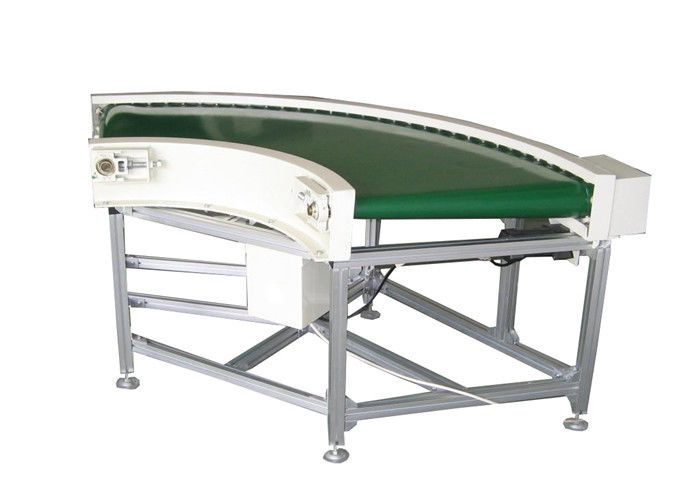

Conveyor Type - Curve Conveyor
| No. | Model | Name | Size |
| 1 | SX-WDA-2 | Curve conveyor A | Roller length 720mm, height 200mm |
| 2 | SX-WDB-2 | Curve conveyor B | Roller length 720mm, height 750mm |
The packaging bag is conveyed to curve conveyor and the bag conveying direction will be changed by the turning effect of the curve and realize various functions of the next stations. The use of caged rollers can effectively prevent the bags from slipping on the conveyor, achieve the function of caching bags by photoelectric detection and PLC program control.
Conveyor Features
-- Simple structure and easy maintenance;
-- Can have a variety of corner ranges.
-- Low noise, low vibration, long-lasting, accurate delivery of product flow;
-- Smooth turn and easy to use;
Package and Shipping
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
Delivery: 7-15 working days after deposit.
Our Service
Quick Response
We highly appreciate your enquiry by email,telephone,online methods..
We will reply your email or telephone within 24 hours.
Pls feel free to contact us at any time if there is any questions.
Technical support and quality control
We are a professional manufacturer of conveyor parts,conveyor system line, packing machine and palletizing robot system in the year 2007. There are 12 high-quality engineers and designers for great technical backup. Meanwhile, Quality Control Dept. make the test of part and machine to ensure the high quality.
FAQ
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:Are you a factory or a trade company?
A:We are the factory.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
