Product Details:
|
| Origin: | Hefei, China | Load Cell Output: | 2.0±0.002MV/V |
|---|---|---|---|
| User Manual: | Chinese / English | Weighing Type: | Continuous Or Intermittent |
| Power: | 220VAC, 50 Hz | Key Point: | Easy To Operate |
| HS Code: | 84741000 | Operating Temperature: | -10~50℃ |
| Highlight: | Salt Industry Conveyor Belt Weigher,Food Grade Conveyor Belt Weigher,Salt Industry weighing belt conveyor |
||
Conveying Belt Scale In Salt Industry , Belt Conveyor Machine With Food Grade
Brief Introduction
Belt scale to be easily installed in the industrial field of ingredients and intermediate measurement section, to measure materials continuously.
Simple structure, stable working, easy operation and maintenance.
Widely used in, fertilizer, metallurgy, electric energy, coal, mining, ports, chemical, building materials and other industries.
Application Scope
Series FH electronic conveyor belt scales are widely used for the measurement in conveying processes of building materials, metallurgy, electric power, chemical, coal, mining, ports and other industries.
It can not only be used in conventional environment, but also in acid, alkali, salt and atmospheric corrosion environments.
Main performance parameter
| NO. | Model | Bandwidth (mm) | Flow range (m³/h) | Accuracy | ||
| 1 | FH05 | 500 | 0.05-6 | Over0.5% | ||
| 2 | FH 06 | 600 | 0.5-10 | |||
| 3 | FH 08 | 800 | 2-30 | |||
| 4 | FH 10 | 1000 | 5-100 | |||
| 5 | FH 12 | 1200 | 10-200 | |||
| 6 | FH 14 | 1400 | 30-300 | |||
| 7 | FH 16 | 1600 | 50-500 | |||
| 8 | FH 18 | 1800 | 100-1000 |

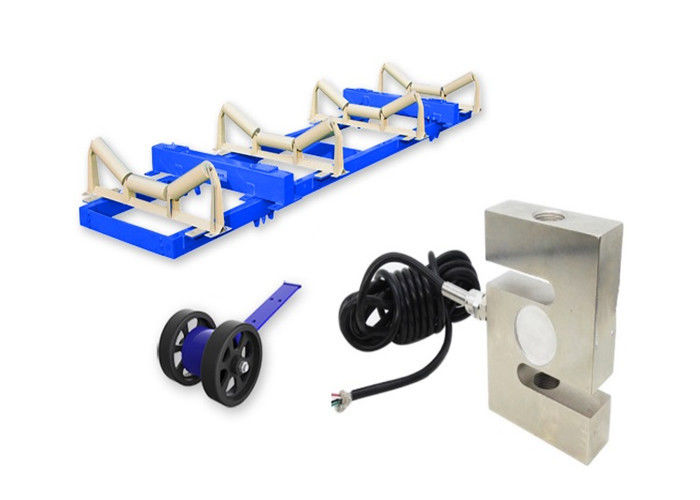

Scope of Supply
| No. | name | Specification | Unit | Qty | Origin | Note |
| 1 | Weighing bridge | FH-4 | Unit | 1 | Saimo | |
| 2 | Totalizer | SA-201 | Set | 1 | Saimo | |
| 3 | Load cell |
PLR9363-LS
|
Piece | 4 | Saimo | |
| 4 | Speed measuring device | PLR-12R | Unit | 1 | Saimo | |
| 5 | Junction Box | PLR-JB | Piece | 1 | Saimo | |
| 6 | Cable |
RVVP 2*0.5 RVVP 4*0.5 |
Meter | Supplier of Saimo | ||
| 7 | Installation accessories | Unit | 1 | Saimo | Contains threaded hoses, hose connectors, gaskets, mounting bolts and nuts, etc. | |
| 8 | User manual | Unit | 2 | Saimo | ||
| 9 | Check hanging code | Unit | 1 | Saimo | Additional paid part |
Machine Characteristics
1. The frame of the conveyor belt scale is made of cold bending C type steel plate, and it has a rational structure and strong intensity.
2. Low noise, less vibration, dust proof, high reliability and a long service life.
3. Annular belt without junction, and users can choose parallel belt, baffle plate or rimmed belt structure.
4. Unique X type leaf spring measuring device to make better linearity and repeatability.
Our Service
Technical services
3.1 Design of production line and solutions according to buyer's requirement.
3.2 In 7 days after the receipt of deposit, the seller shall provide related technical documents for equipment installation, in addition to those with special requirements.
3.3 Before delivery, the seller can modify the previous solutions according to buyer's requirement.
Load cell
The load cell PLR9363-LS used in the FH type floating scale series belt scale is a strain gauge load cell
| Sensor type | Shear beam |
| Rated load(kg) | 50,100,200,300,500,1000,2000 |
| Sensitivity(mV/V) | 1.8±0.005 |
| Creep (30 minutes) | ±0.05％FS |
| Zero balance | ±1％FS |
| Zero temperature effect(％FS/10℃) | ±0.02 |
| Input resistance | 400±10Ω |
| Output impedance | 352±3Ω |
| Range of working temperature | -30℃～+70℃ |
| Safety overload | 120％FS |
| Material | Alloy steel |
| Outlet diameter | φ5mm |
| Outlet length | 3m |
Package and Delivery
Machine film wrapped and packed in exported fumigation wooden cases, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
We can also transport the machines by flight, all depend on client's requirement.
